Surge Protection for Security Systems
All the safety devices used in your facilities are very sensitive and vulnerable to lightning and switching surges. If these systems are damaged by transient voltages, then the entire protection strategy could be compromised, with lives put at risk : surge protection is highly recommended.

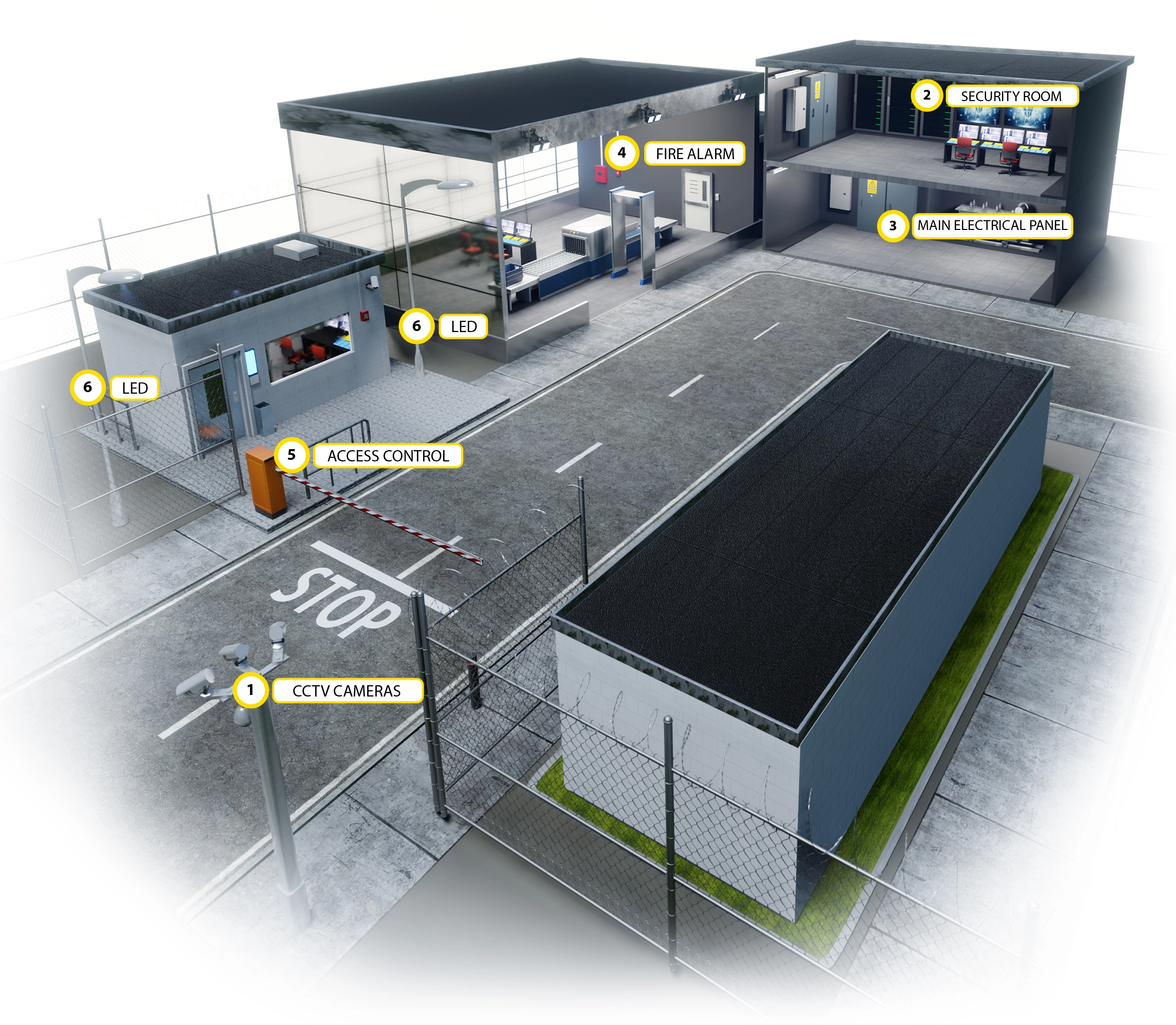

Selection of SPDs for Security Systems
1 - Surge Protectors for Survey Cameras
| Location | Citel model | Type of SPDs | |
|---|---|---|---|

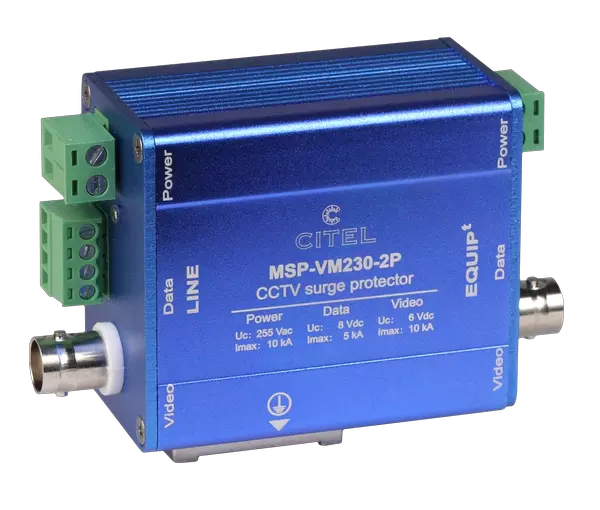

| Anolog Camera | MSP-VM230-2P | Combined surge protectors |
|

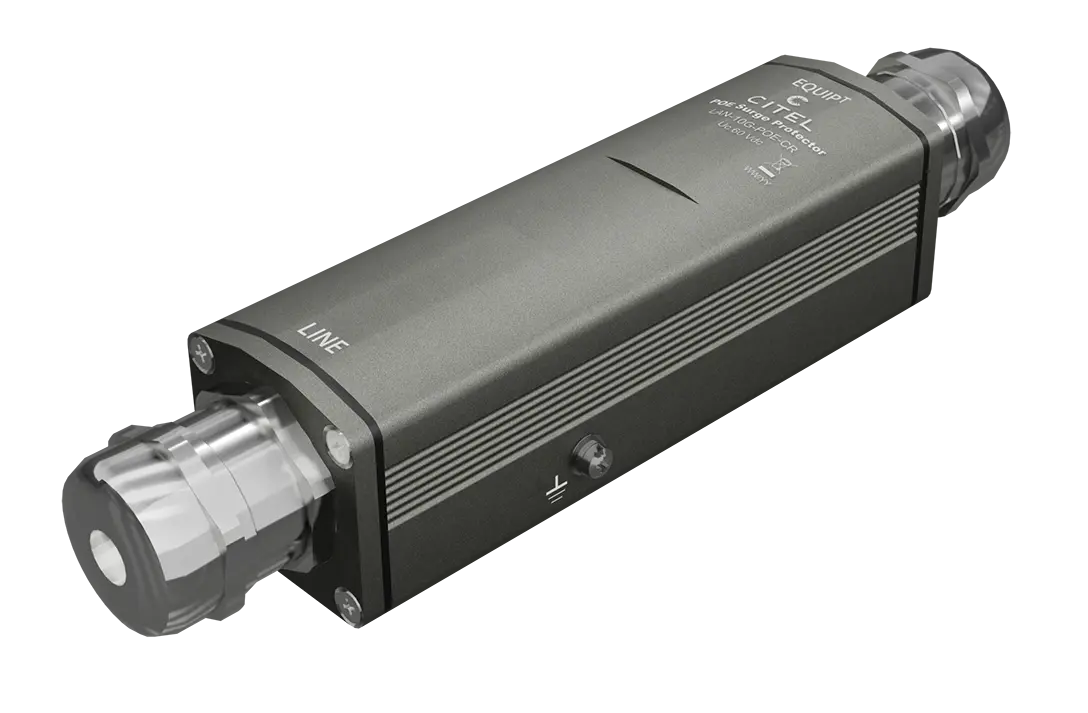

| IP Cameras | LAN-10G-POE-CR | Outdoor POE++ and 10 Gigabit Ethernet |
|

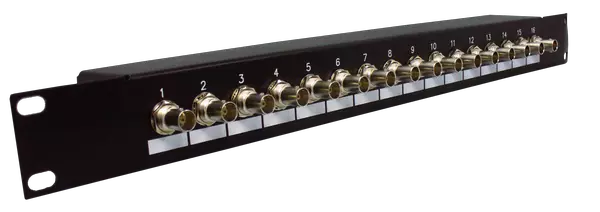

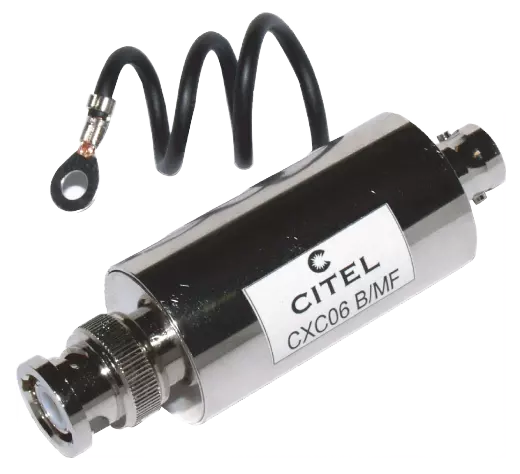

| Coaxial lines as Video-transmission | CXC06-B/FM | Coaxial surge protector, BNC connector |
|

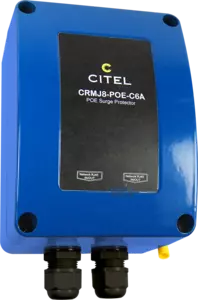

| 10Gigabit Ethernet/POE++ networks | MJ8-POE-C6A | Ethernet surge protector, Shielded RJ45 connections on Cat6A cabling |
|

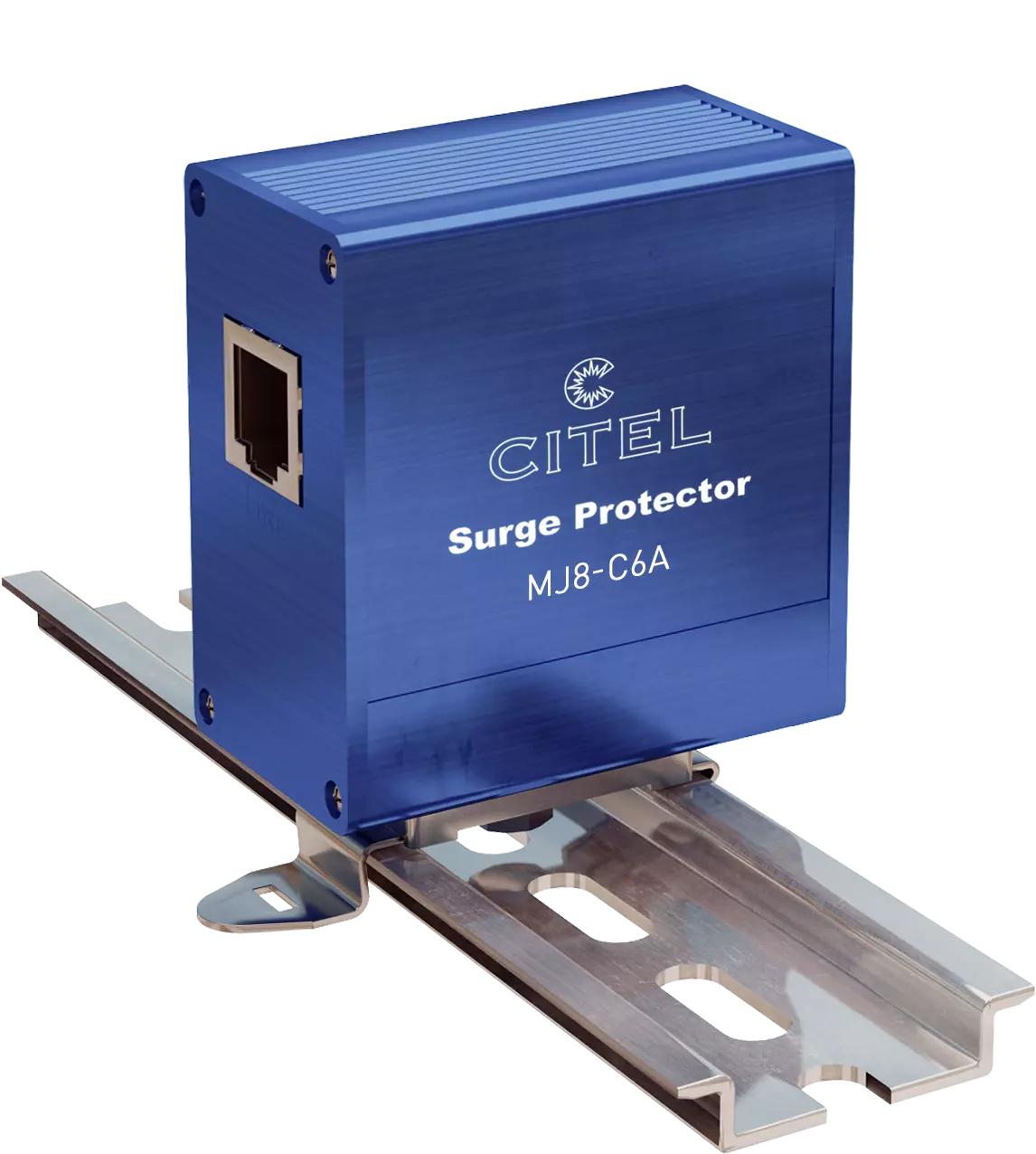

| 10Gigabit Ethernet | MJ8-C6A | Ethernet surge protector, Shielded RJ45 connections on Cat6A cabling |
|
2 - Surge Protectors for Control Rooms
| Location | Citel model | Type of SPDs | |
|---|---|---|---|
| Control room | RAK16-E-C6 | 19" Rack surge protector - 10/100/1000BaseT networks |
|
3 - Surge Protectors for Main Electrical Panel
| Location | Citel models | Type of SPDs | |
|---|---|---|---|

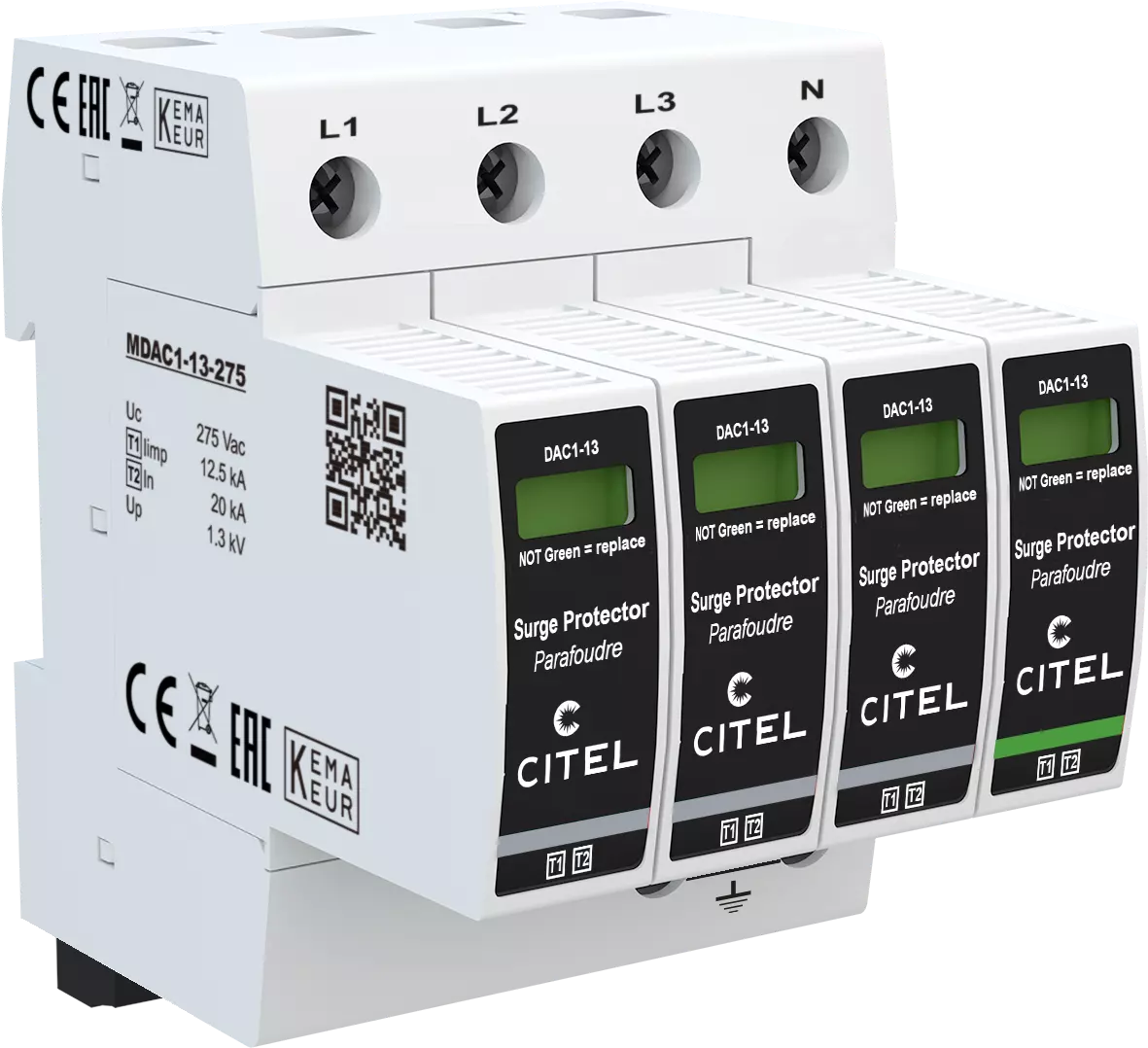

| AC network - Main switchboard | DAC1-13S-31-275 | Type 1+2+3 surge protector 3-phase+N |
|
4 - Surge Protectors for fire Alarm
| Location | Citel model | Type of SPDs | |
|---|---|---|---|

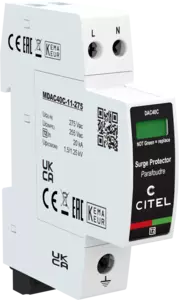

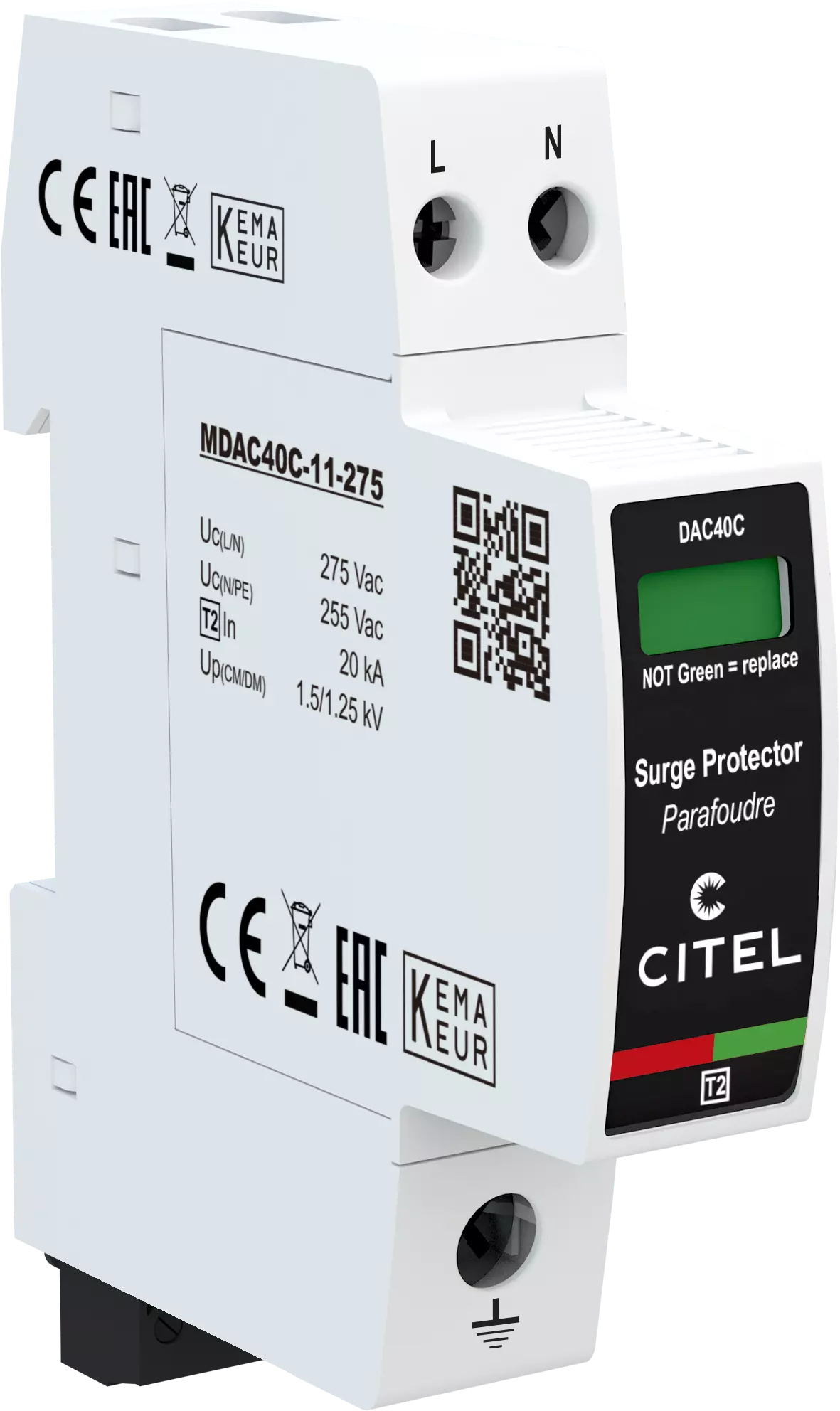

| Fire alarm | DAC40CS-11-275 | Type 2 (or 3) surge protector - Compact - Single phase |
|
| Fire alarm | DAC40CS-31-275 | Type 2 (or 3) surge protector - Compact - 3-phase |
|
5 - Surge Protector for Acces Control
| Location | Citel model | Type of SPDs | |
|---|---|---|---|

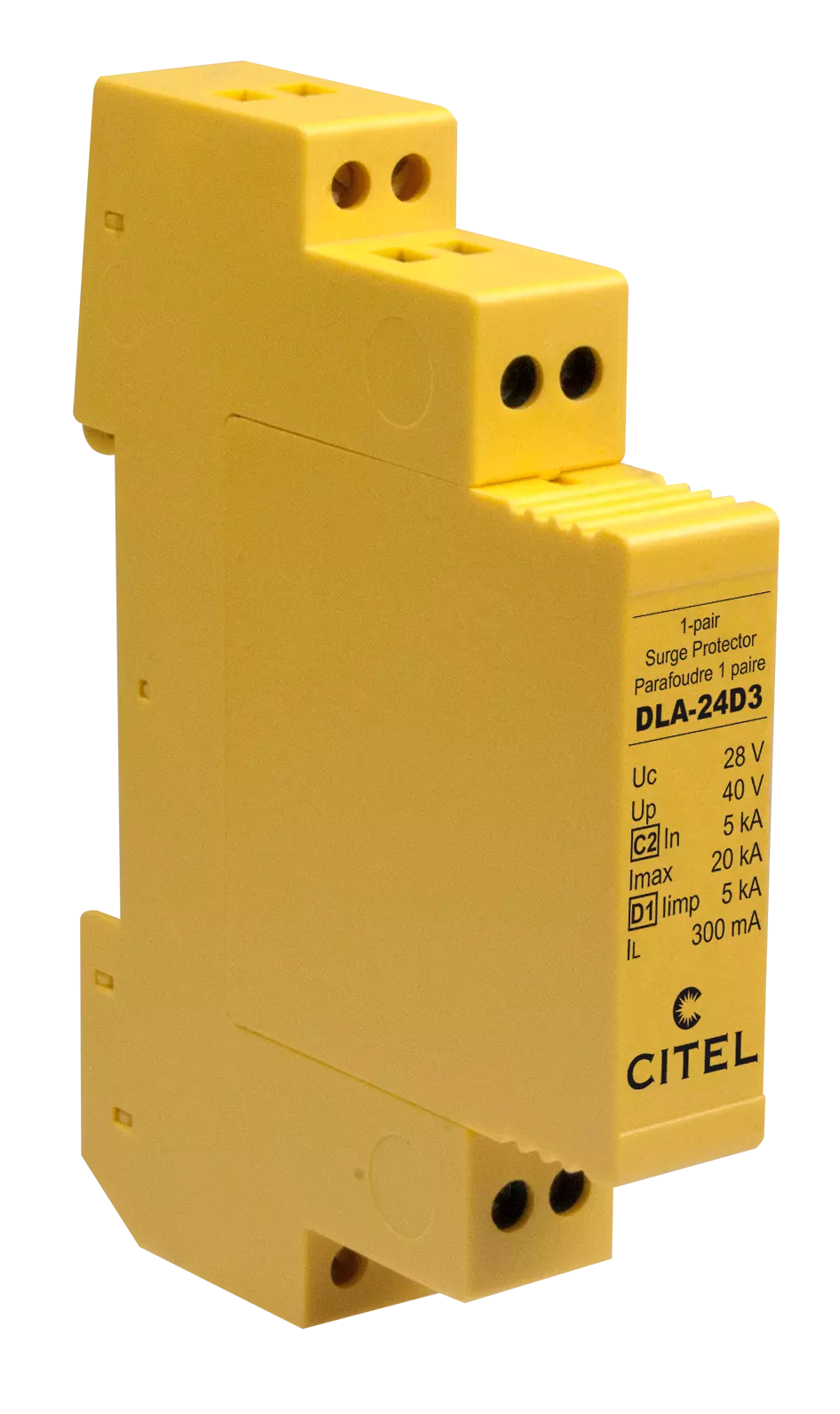

| Access control | DLA | Dataline surge protectors - DIN rail mounting |
|
6 - Surge Protector for LED Lighting
| Location | Citel model | Type of SPDs | |
|---|---|---|---|

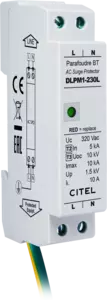

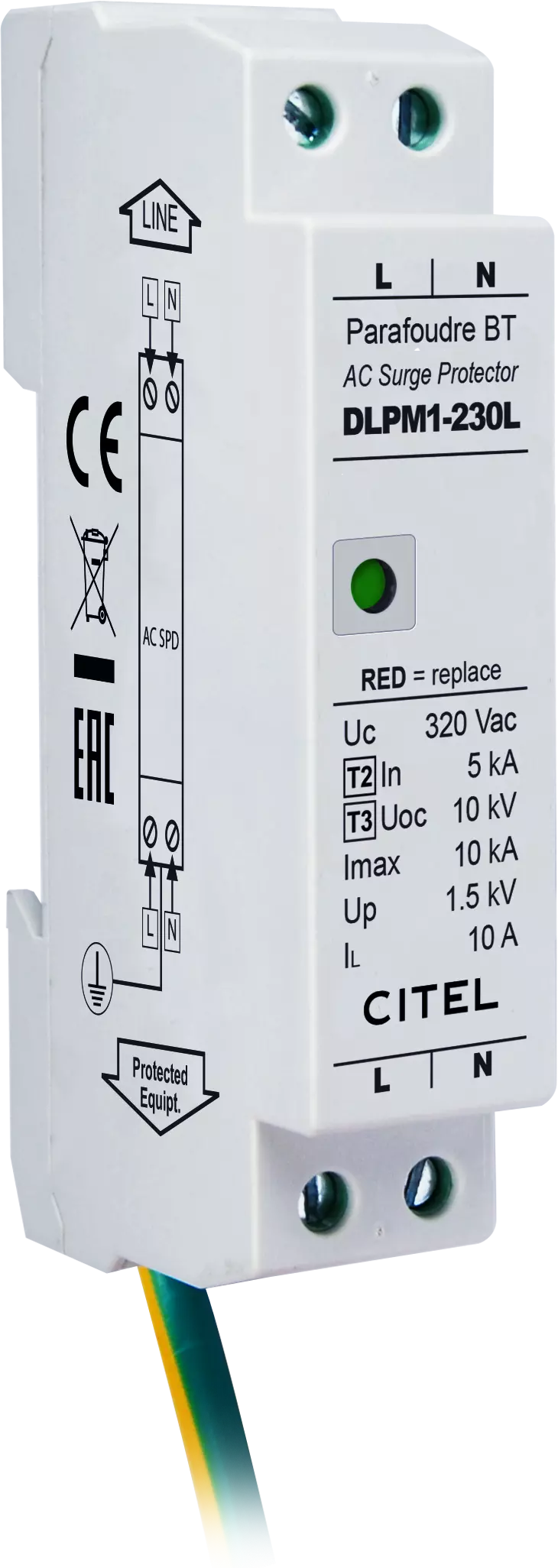

| Inside the cutouts of led lighting pole | DLPM1-230L | 230 V single phase surge protector - DIN rail mounting |
|
