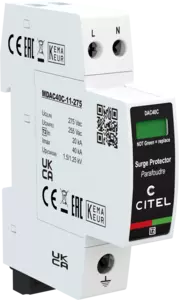

Compact 1-phase Type 2 (or 3) surge protector - 275 V - Pluggable

DAC40CS-11-275
Part Number 821520221
DAC40CS-11-275
  • Compact Surge protector, 2-pole Type 2 or 3
  • Conductivity per pole: In= 20 kA; Imax= 40 kA
  • Common protection mode
  • Safe disconnect device
  • Transverse / longitudinal voltage protection
  • Energetically coordinated
  • Pluggable protection module
  • Remote signalling
  • IEC 61643-11 / EN 61643-11 certified
  • UL1449 ed.5 compliance

DAC40CS products are compact, Type 2 or type 3 surge protection (SPD) devices designed to protect single-phase or 3-phase systems. They are designed for DIN rail mounting and the SDP cartridges are replaceable. The DAC40CS series are available for supply voltages from 75 Vac to 350 Vac. The protection circuit consists of high energy varistors, with a thermal disconnection system. The SPD includes status signalling via a visual indicator and a remote signalling system.


SPD type
IEC

2

Network

230 V single-phase

AC system

TT-TN

Max. AC operating voltage
Uc

275 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms withstand

Residual Current
Leakage current to Ground
Ipe

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

40 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

40 kA

Protection mode(s)

L/PE and N/PE

Protection level L/N
@ In (8/20µs)
Up L/N

1.25 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.5 kV

Admissible short-circuit current
Isccr

10 000 A

Technology

MOV+GDT

SPD configuration

Single phase

Connection to Network

By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)

Format

Plug-in modular box

Plugable

Yes

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator - Red/Green

Spare module(s)

MDAC40C-11-275

Remote signaling of disconnection

Output on changeover contact

Wiring for remote signaling

1.5 mm² max.

Max. Voltage/Current for remote signaling

250 V / 0.5 A (AC) / 30 V / 3 A (DC)

Dimensions

See diagram - 1TE (EN43880)

Weight

0.100 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

KEMA

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

50 A min. - 125 A max. - Fuses Type gG
