Photovoltaic surge protection for residential installation
For low power PV applications, i.e. residences and small offi ces, it is necessary to consider surge protecting the AC output of the Inverter that connects directly into the electric power grid as well as the DC input side of the Inverter fed by the PV modules.

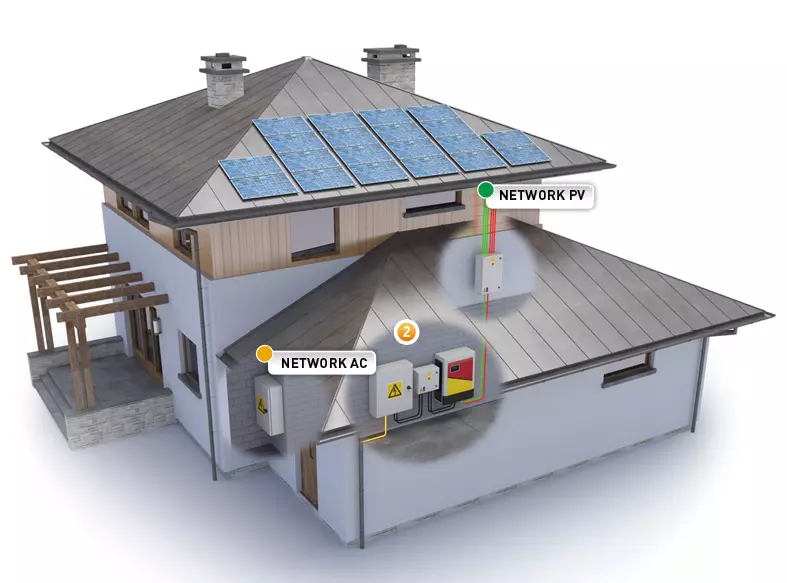

Example of a photovoltaic surge protection installation
Selection of surge protectors
On this table you will find the surge protection solution for residential PV installations.
| Location | CITEL model | Description | |
|---|---|---|---|
| PV network |

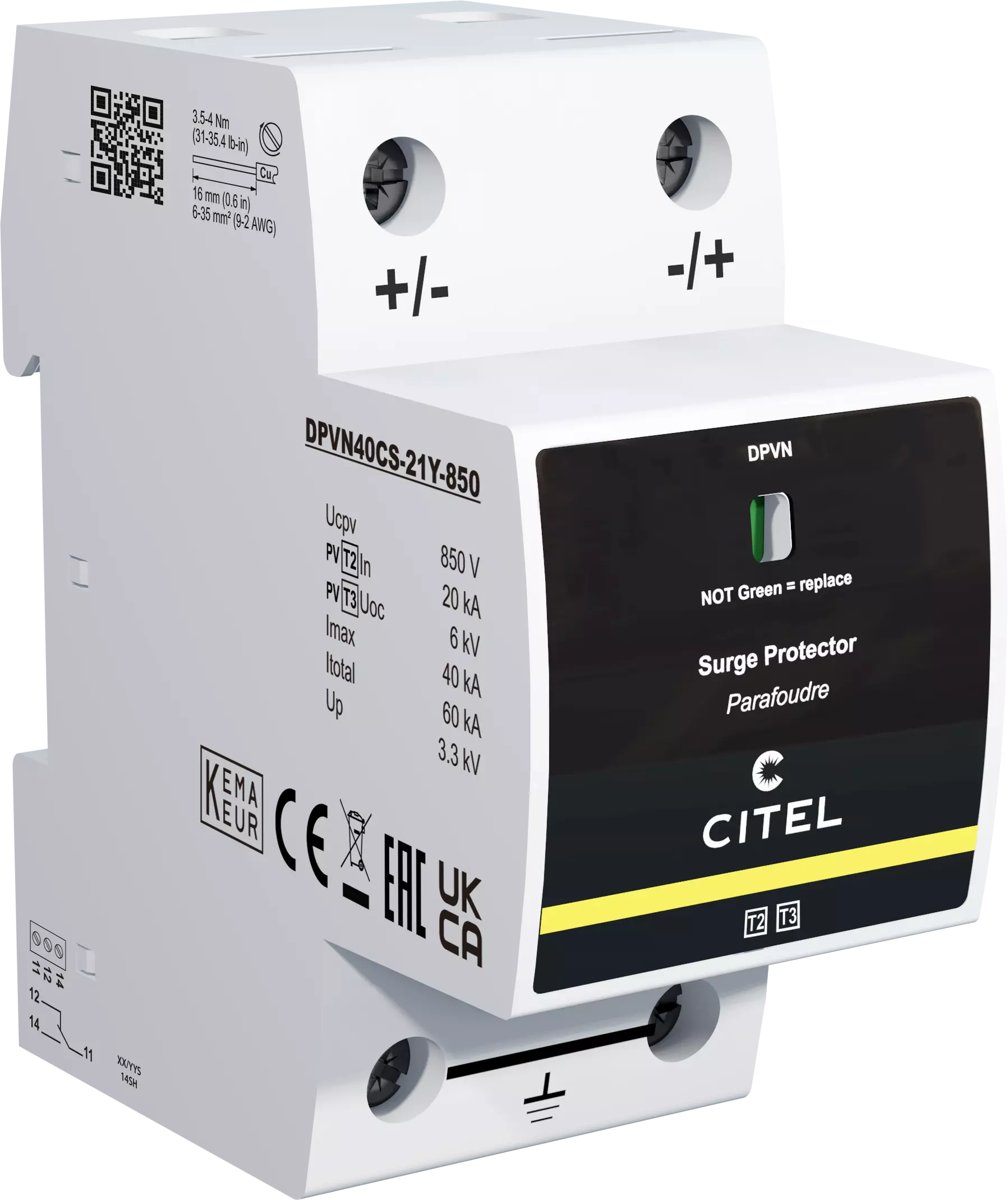

| DPVN40CS-21Y-850 | Type 2+3 PV surge protector CTC technology In 20kA - Imax 40kA - Remote signaling |
| AC network |

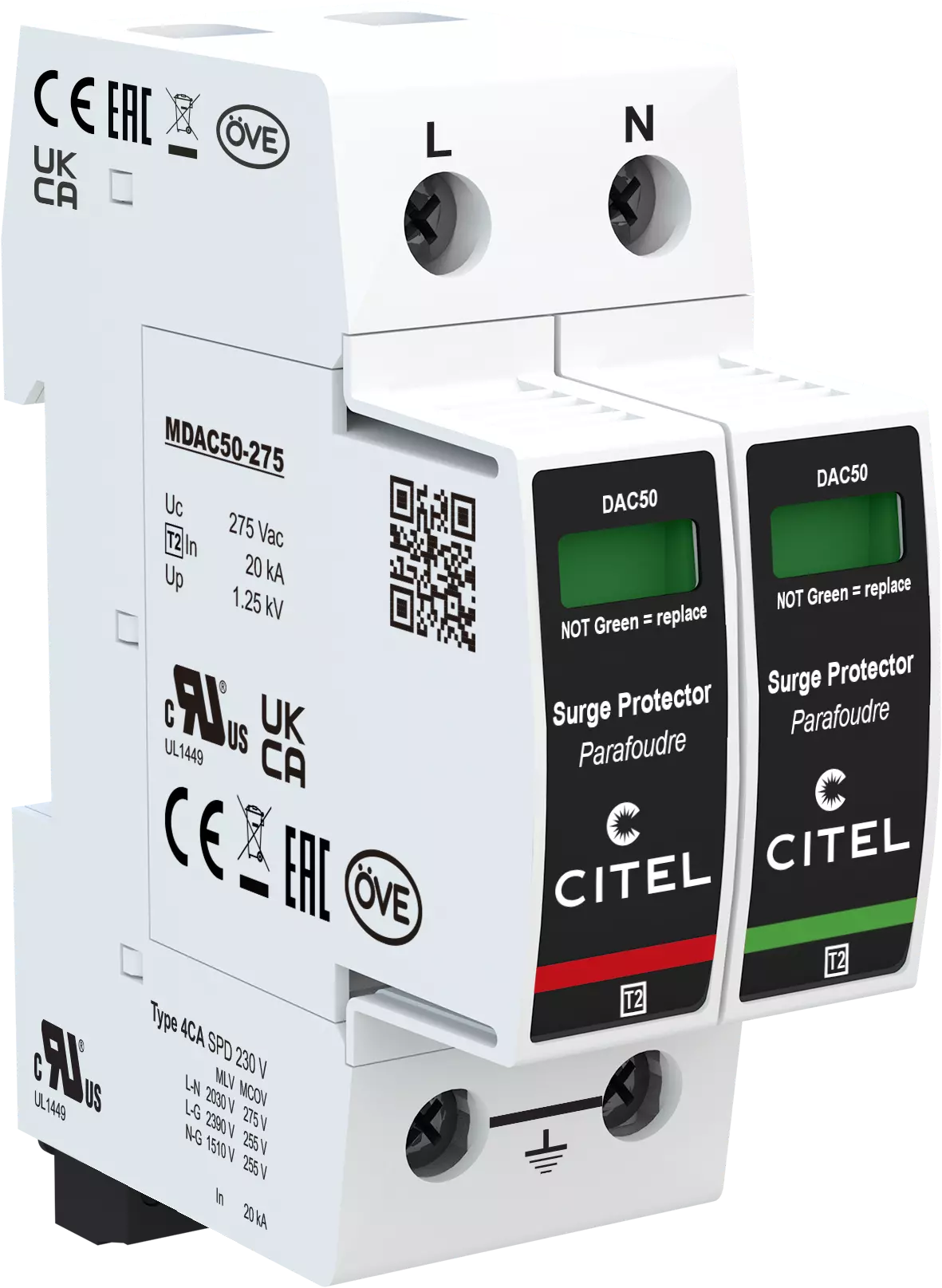

| DAC50S-11-275 | Type 2 AC surge protector In 20 kA - Imax 50 kA - Remote signaling |
| AC network |

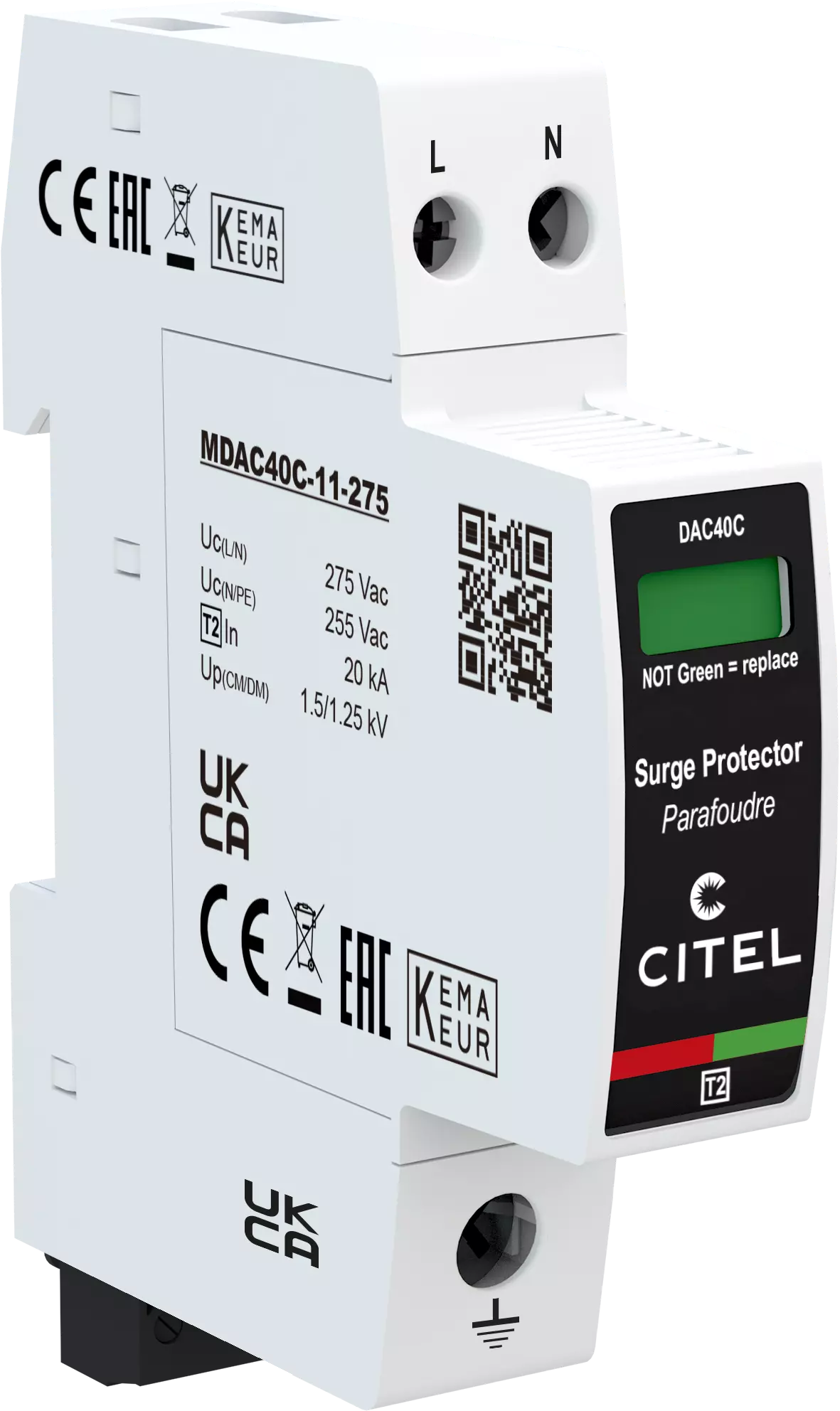

| DAC40CS-11-275 | Type 2 Compact AC surge protector In 20 kA - Imax 40 kA - Remote signaling |
Surge protection for Off-grid site
Grid-isolated sites powered by solar panels are, due to their isolated location and exposure to lightning, especially prone to transient overvoltages.

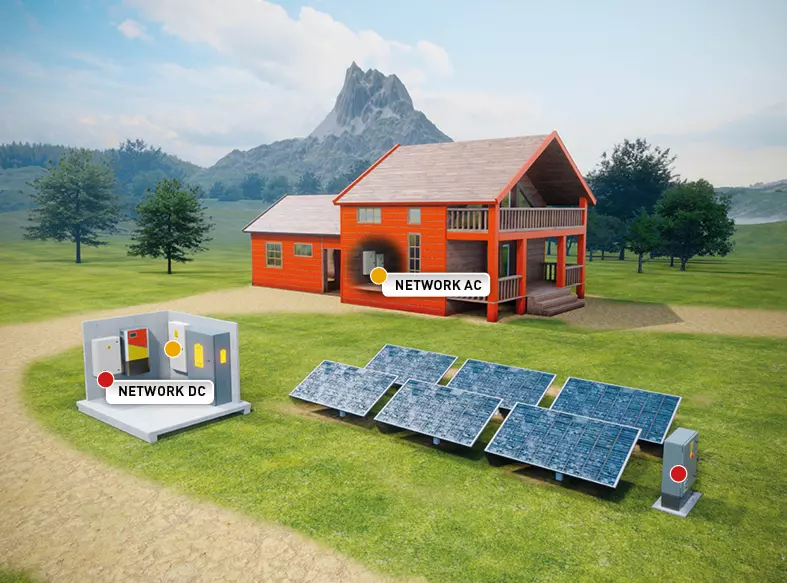

Example of a photovoltaic surge protection installation
Selection of surge protectors
| Location | CITEL model | Description | |
|---|---|---|---|
| AC network |

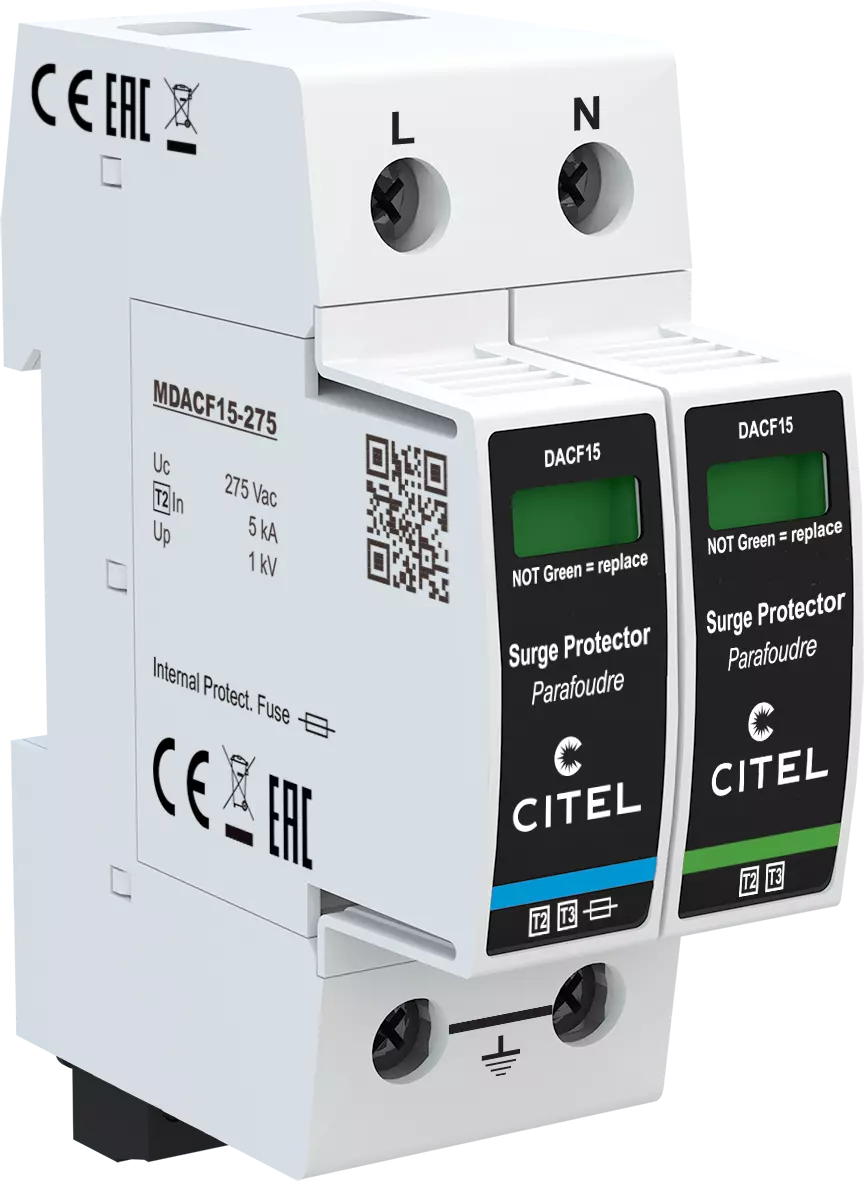

| DACF15S-11-275 | Type 2 (or 3) AC surge protectors In 5 kA - Imax 15 kA - Internal fuse - Remote signaling |
| DC network |

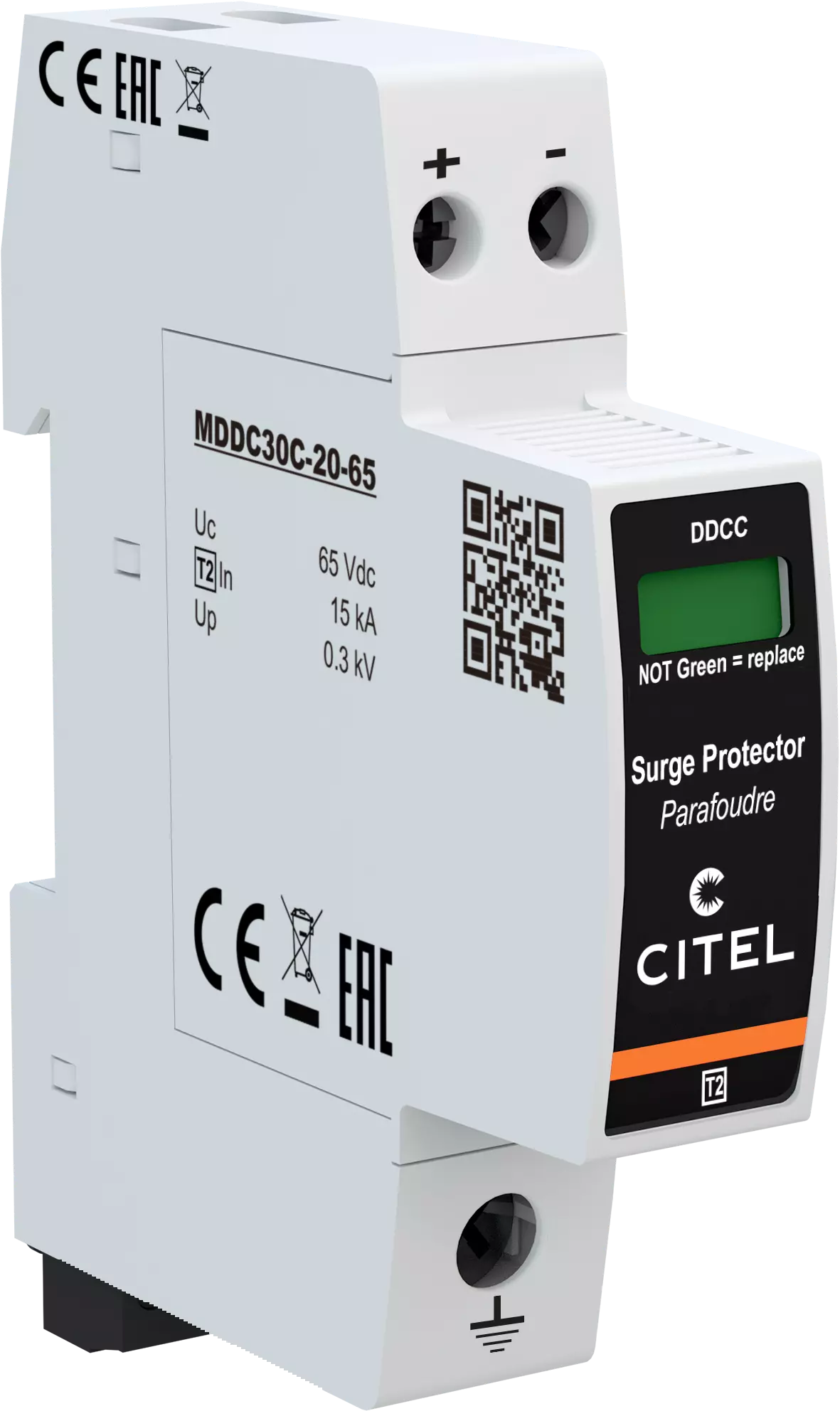

| DDC30CS-20-65 | Type 2 DC power surge protector Imax 30 kA - Compact - Remote signaling |
