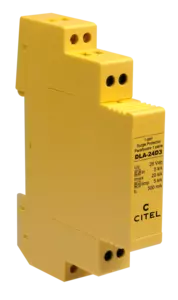

1-pair DIN rail plug-in Data surge protector

Part Number: 6403011
DLA-24D3
DLA-24D3
DLA-24D3
DLA-24D3
DLA-24D3
  • High current data transmission
  • Common mode and differential mode protection
  • Data lines, including those isolated from Earth
  • Compact DIN rail enclosure, high density protection
  • Protection of shield wire
  • Location and test categories: D1, C2, C3
  • IEC 61643-21 compliance
DLA surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. D3 types aim to realize fine protection and D2 types is specific for floating application. These products are 1-pair surge protectors with removable module for easy maintenance.

Network

4-20mA, Liaison 24V
Nominal line voltage
 Un

24 V
Max. DC operating voltage
 Uc

28 Vdc
Cut-off frequency
-3dB, 100 ohm system
 f max.

> 115 MHz
Cut-off frequency
-1dB, 100 ohm system
 f max.

> 50 MHz
Max. load current @25°C
 IL

300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Nominal discharge current
C2 Category
 In

5 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
 Up

40 V
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
 Up

40 V
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
 Iimp

5 kA
Line resistance (± 10%)

4.7 Ohm

Technology

GDT+TVS diode
SPD configuration

1-pair+shielded
Connection to Network

By screw terminal: cross section 0.5-2.5mm²
Format

Din Rail Base-Plug-in Module
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Short-circuit
Disconnection indicator

Transmission interrupt - default mode 2
Spare module(s)

DLAM-24D3
Dimensions

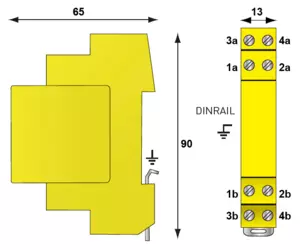

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B
UL File Number

E184939
Certification

UL Listed
Environmental standards

EU RoHS
