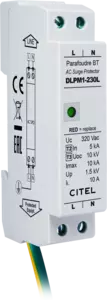

Surge protector for LED lighting system Class 1

DLPM1-230L
Part Number 355913
DLPM1-230L
  • Type 2 (or 3) surge protectors for LED
  • For single-phase or biphase network
  • Very compact (low profile)
  • DIN rail mounting
  • Screw terminal connection
  • Mechanical status indicator
  • Disconnection AC end of life
  • EN 61643-11 compliance

The DLPM range is a series of DIN-mount AC surge protector designed to be installed inside the cutouts: his compact size and lower height make it compatible with the DIN rail mounting of its enclosures. This range has a mechanical disconnect indicator.

Select another reference:

SPD type
IEC

2 (or 3)

Network

220-240 V Single-phase

AC system

TT-TN

Nominal line voltage
Un

230-277 Vac

Max. AC operating voltage
Uc

320 Vac

Max. load current @25°C
IL

10 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms disconnection

Residual Current
Leakage current to Ground
Ipe

None

Operating current
Continious current at Uc
Ic

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

10 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

20 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV / 5 kA

Withstand on overvoltages IEEE C62.41.1

10 kV / 10 kA

Protection mode(s)

Common/Differential mode

Protection level L/N
@ In (8/20µs)
Up L/N

1.5 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.5 kV

Admissible short-circuit current
Isccr

10 000 A

Technology

MOV+GDT

Connection to Network

Screw terminal 2.5mm² max. Earthing conductor 2 mm² - length 60cm

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator

Operating indicator

Green Indicator

Remote signaling of disconnection

No

Dimensions

See diagram

Standards compliance

EN 61643-11 / IEC 61643-11

Certification

CB

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed
