Surge protectors for photovoltaic installations in commercial/industrial buildings and car parks
Transient overvoltages and photovoltaic roofs top
Tertiary or industrial sites can integrate medium or high power photovoltaic production directly on the roofs of buildings or via the installation of shaded areas equipped with photovoltaic modules on car parks.
In case of lightning surges, material losses (inverters, PV panels, ...) or operating losses are likely: the implementation of surge protectors (SPD) at the key points of the installation will therefore be necessary or mandatory.
As with any photovoltaic installation, it is required to protect the AC and DC sides of the PV modules from transient overvoltages.
In addition, in order to protect the monitoring systems, surge protectors for data networks must be installed.

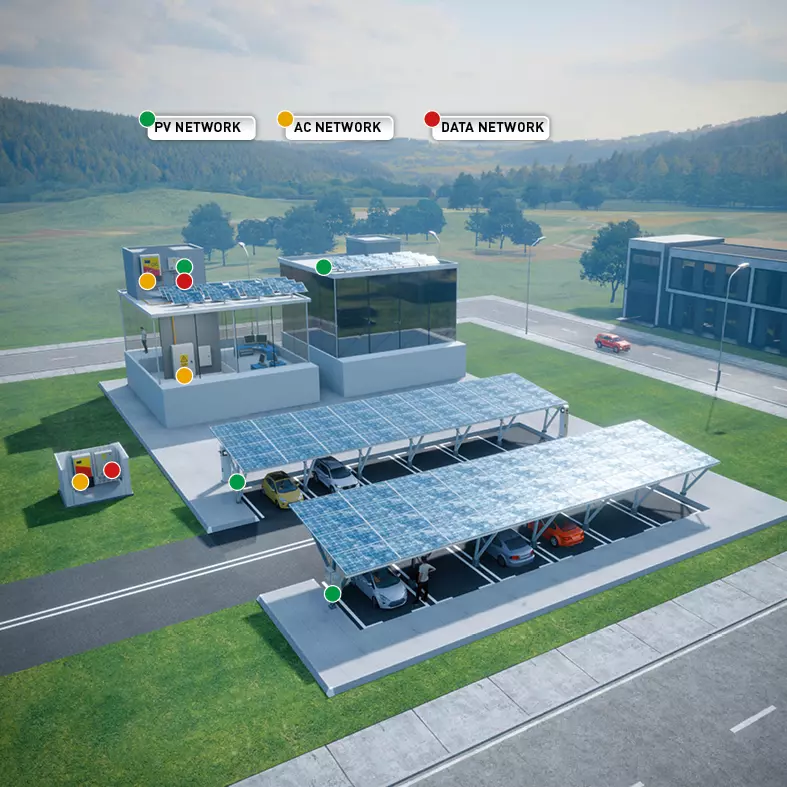

Example of a photovoltaic surge protection installation
Selection of surge protectors
On this table you will find the surge protection solution for PV installations on commercial and industrial sites.
| Location | Citel model | Description | |
|---|---|---|---|
| PV NETWORK |
| DPVN-40CVGS-21Y-1200 | Type 2 PV surge protector In 20kA - Imax 40kA - Remote signaling |
| PV NETWORK |

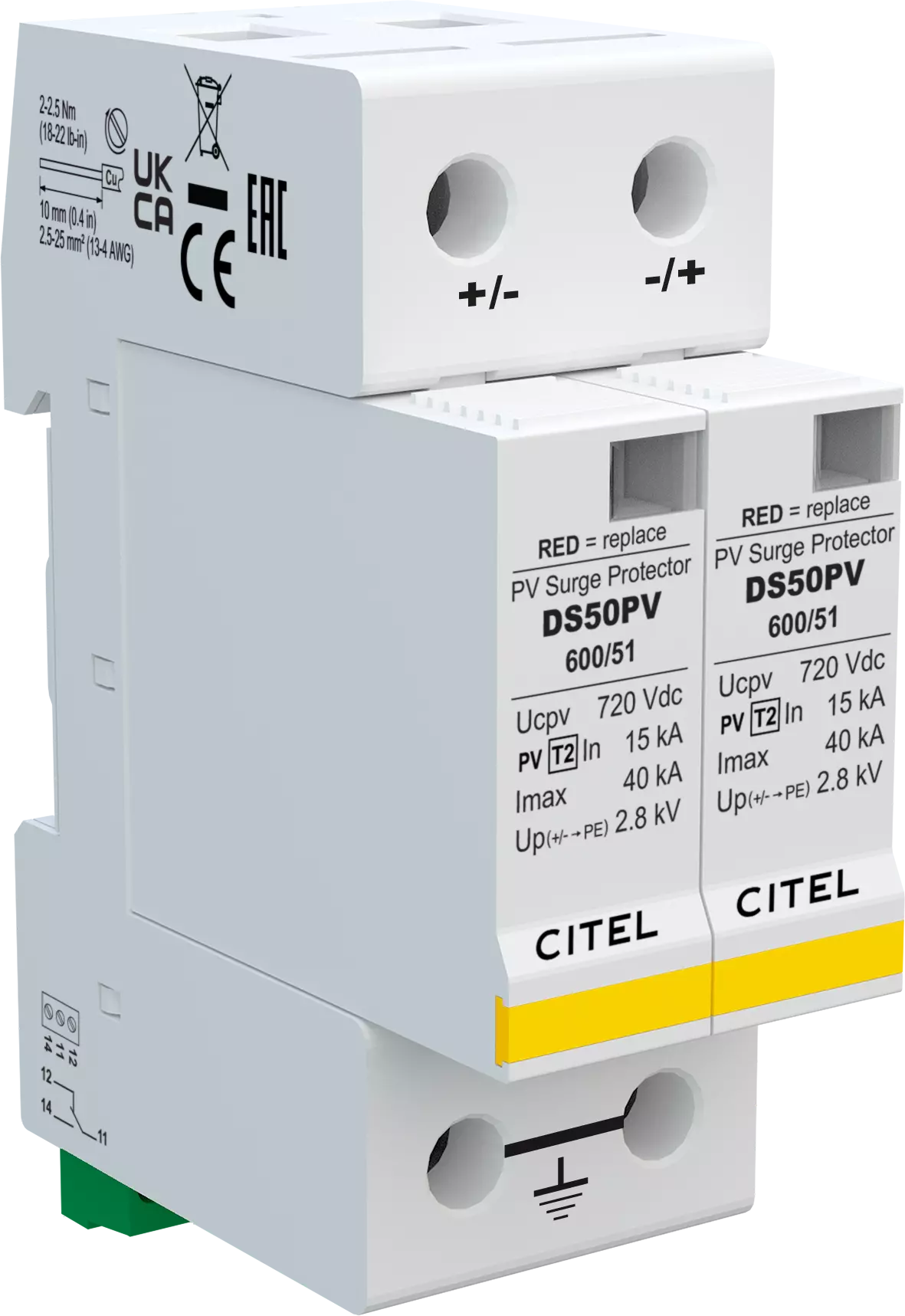

| DS50PVS-600/51 | Type 2 PV surge protector In 15kA - Imax 40 kA - Remote signaling |
| AC NETWORK |

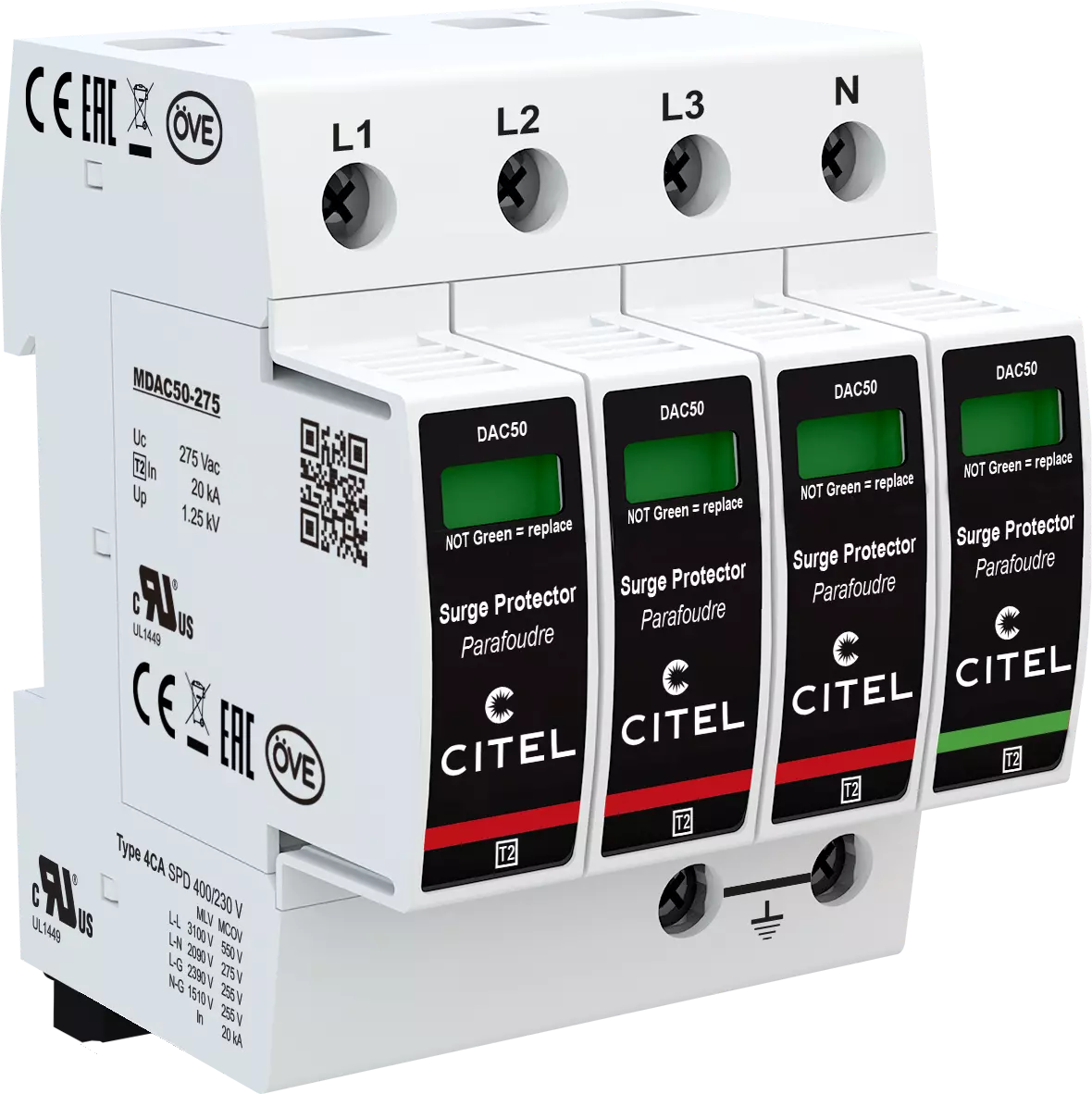

| DAC50S-31-275 | Type 2 AC surge protector In 20 kA - Imax 50 kA - Remote signaling |
| AC NETWORK |

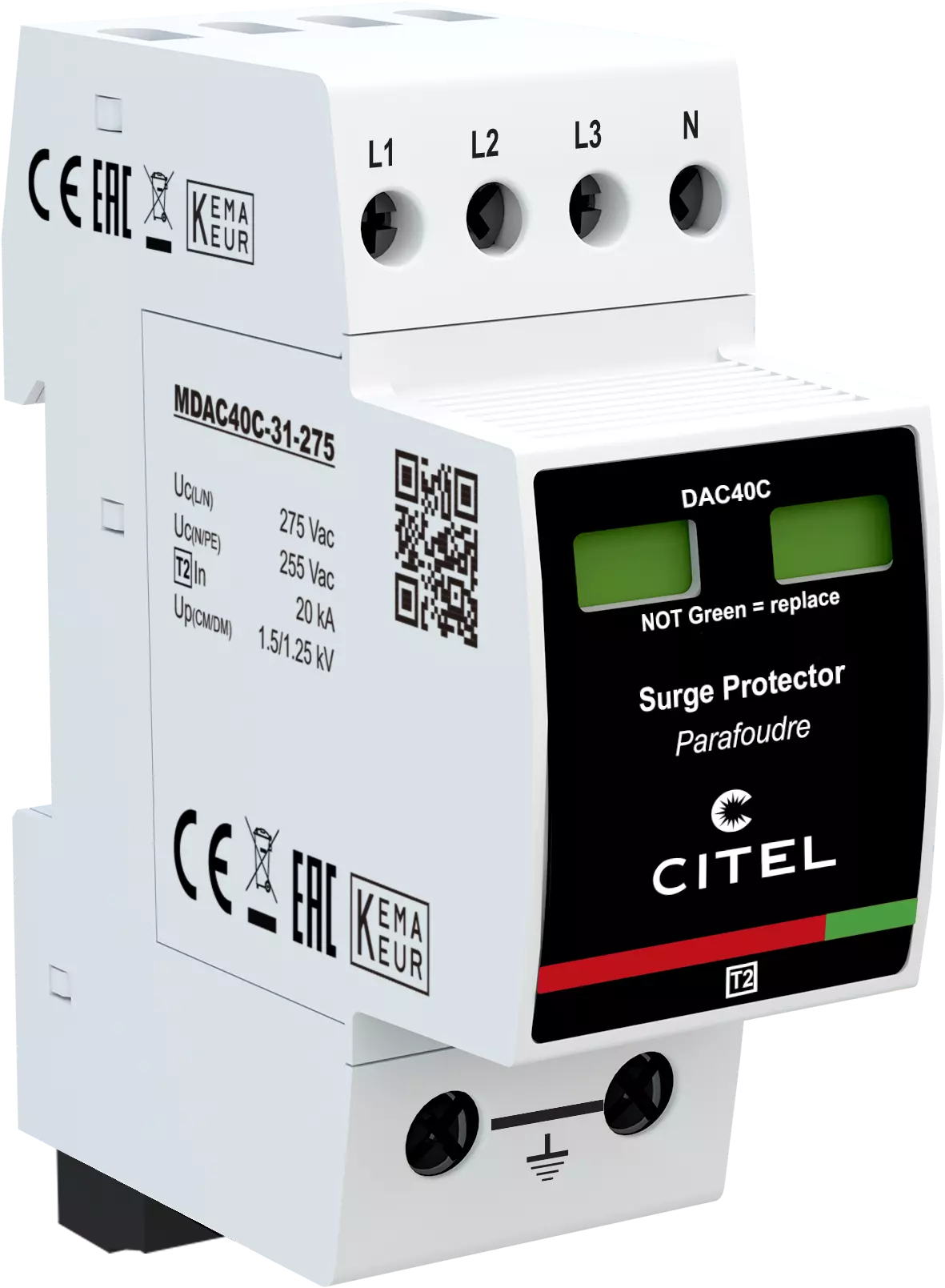

| DAC40CS-31-275 | Type 2 AC surge protector In 20 kA - Imax 40 kA - Remote signaling - Compact |
| DATA NETWORK |

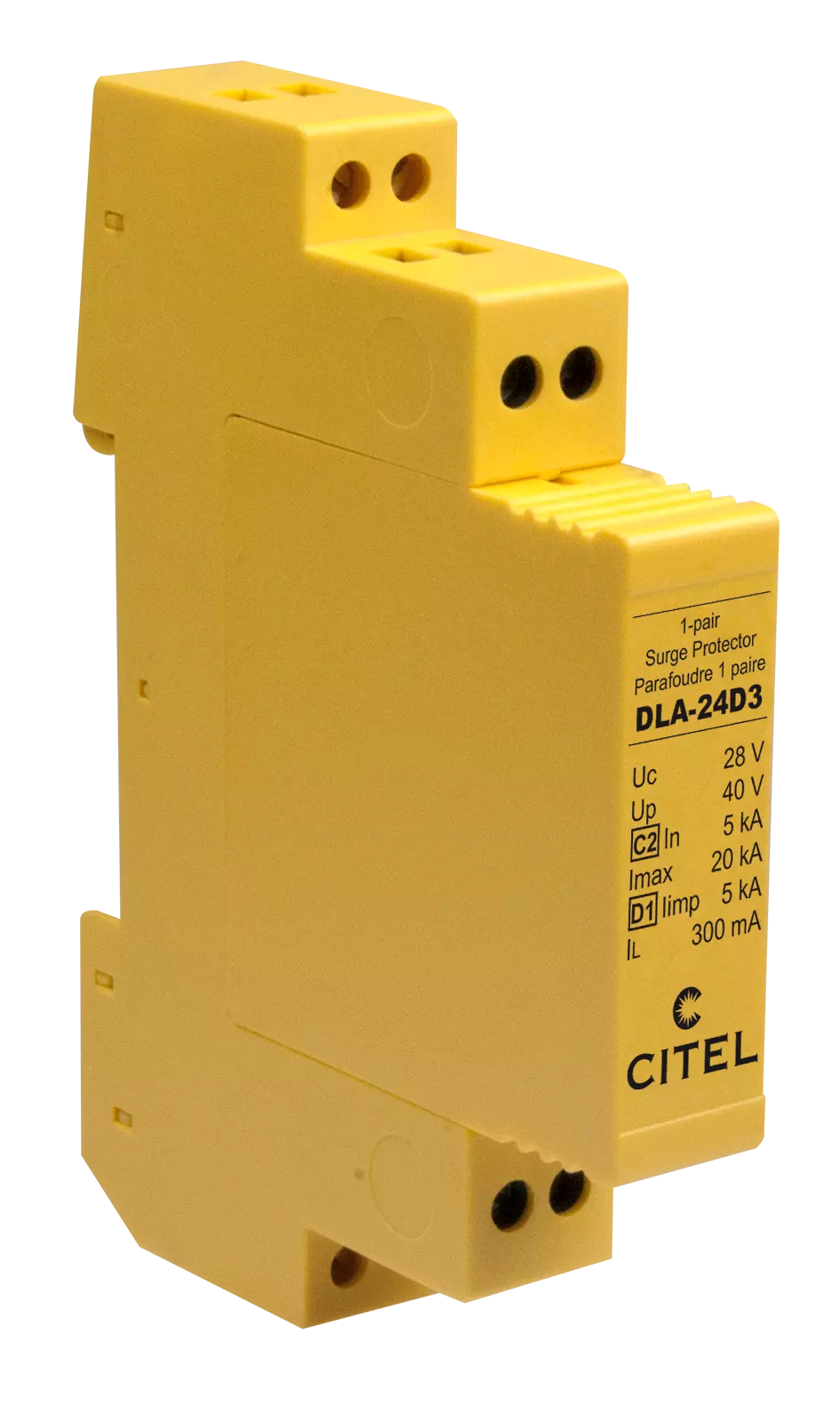

| DLA-24D3 | 1-pair pluggable surge protector In 5 kA - Imax 20 kA - Remote signaling |
