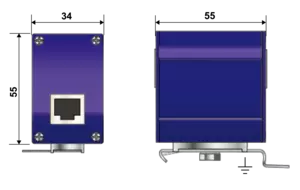

POE surge protector
MJ8-POE-C6A
Surge protector for POE ++ and Category 6A cabling network
MJ8-POE-C6A
Part Number:
581541
POE++ compatible
Category 6A compatible
RJ45 Shielded connectors
Mounted on frame or DIN rail
Compliance IEC 61643-21, EN 61643-21
Certified UL497B
Installation Sheet
Contact Us
The MJ8-POE-C6A is designed to protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages. This SPD is qualified with the maximum transmission speed and cabling category used for these Ethernet networks: 10Gigabit Ethernet and Category 6A. Obviously, it is applicable for the Ethernet networks with lower categories. The MJ8-POE-C6A surge protector is deployed in signal network applications with data transmission speeds up to 10 GMbps. The surge protector is housed in a shielded enclosure with high quality RJ45 shielded jacks. The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.
Select another reference:
MJ8-POE-A
MJ8-POE-B
MJ8-POE-C6A
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
10Gigabit Ethernet - Cat 6A cabling specification
Nominal line voltage
Un
48 Vdc
Max. DC operating voltage
Uc
60 Vdc
Max. frequency
f max.
500 MHz
Max. data rate
10 Gbps
Insertion loss
< 1 dB
Max. load current
IL
2000 mA
Protection level
Up
70 V
Impulse current
Iimp
500 A
Line/Line Nominal discharge current
In L/L
500 A
Line/Ground Nominal discharge current
In L/PE
2000 A
Technology
GDT+Clamping diode
SPD configuration
4 pairs+shielded
Connection to Network
RJ45 shielded connectors Female input/output
Format
Metallic box with connectors input/output
Mounting
Mounting flange,Screw lug, DIN Rail
Accessory(s) provided
DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe
Housing material
Aluminium
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Short-circuit
Disconnection indicator
Transmission interrupt - default mode 2
Pinout
(1-2)(3-6)(4-5)(7-8)
Dimensions

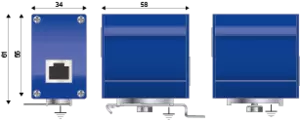

See diagram
Weight
0.106 kg
Standards compliance
IEC 61643-21/ EN 61643-21 / UL497B IEEE 802-3af/3at/3bt/ ANSI/TIA-568-C.1
Certification
