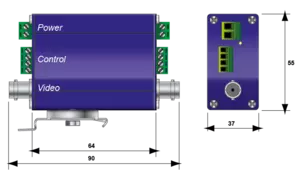

Surge protector for Video survey
MSP-VM230-2P
Surge protector for Video survey
MSP-VM230-2P
Part Number
420431
Datasheet
Installation Sheet
Tender specifications
Contact Us
Select another reference:
MSP-VM12-2P
MSP-VM230-2P
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
Signal video
Network
2 pairs signal 0-5 V
Network
230 V single-phase
AC system
TT-TN
Max. DC operating voltage
Uc
6 Vdc
Max. DC operating voltage
Uc
8 Vdc
Max. DC operating voltage
Uc
255 Vdc
Max. frequency
f max.
16 Mhz
Max. frequency
f max.
100 Mhz
Max. frequency
f max.
16 MHz
Insertion loss
< 0.1 dB
Insertion loss
< 1dB
Insertion loss
< 1dB
Max. load current
@25°C
IL
5 A
Max. load current
@25°C
IL
300 mA
Max. load current
@25°C
IL
300 mA
Operating current
Continious current at Uc
Ic
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Nominal discharge current
15 x 8/20 µs impulses
In
2.5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV / 5 kA
Protection mode(s)
Common/Differential mode
Protection level
@ In (8/20µs)
Up
1.2 kV
Protection level
@ In (8/20µs)
Up
20 V
Protection level
@ In (8/20µs)
Up
20 V
Protection level
@ In (8/20 µs)
Up L/L
20 V
Technology
MOV+GDT
Connection to Network
By screw terminals: 2.5mm² max.
Format
DIN rail or flange
Mounting
DIN rail or plate (flange)
Housing material
Anodized aluminum
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Green LED OFF and line cut-off
Disconnection indicator
LED green OFF and AC network cut-off
Dimensions
See diagram
Weight
0.176 kg
Standards compliance
IEC 61643-21 / EN 61643-21 / UL1449 ed.5
×
Description:
Standards compliance:
IEC 61643-21 / EN 61643-21 / UL1449 ed.5
Technology:
MOV+GDT
Network:
Signal video
Network:
2 pairs signal 0-5 V
Network:
230 V single-phase
AC system:
TT-TN
Max. DC operating voltage:
6 Vdc
Max. DC operating voltage:
8 Vdc
Max. DC operating voltage:
255 Vdc
Max. discharge current :
10 kA
Max. discharge current :
5 kA
Max. discharge current :
10 kA
Protection level :
1.2 kV
Protection level :
20 V
Protection level :
20 V
CITEL
Reference:
MSP-VM230-2P
Part Number:
420431
Or equivalent
