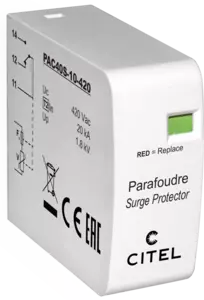

Type 2 AC Surge Protector for PCB mounting

PAC40S-10-420

Part Number 8712201

Select another reference:

Electrical Properties Mechanical Properties Norms Deconnector Schematics

SPD type	IEC	2
Max. AC operating voltage	Uc	420 Vac
Operating current Continious current at Uc	Ic	< 0.1 mA
Nominal discharge current 15 x 8/20 µs impulses	In	20 kA
Max. discharge current max. withstand @ 8/20 µs by pole	Imax	40 kA
Protection level @ In (8/20µs)	Up	1.8 kV
Admissible short-circuit current	Isccr	25 000 A

Connection to Network		Through soldering pins
Mounting		On Printed Circuit Board
Housing material		Thermoplastic UL94 V-0
Operating temperature	Tu	-40/+85°C
Protection rating		IP20
Disconnection indicator		1 mechanical indicator
Remote signaling of disconnection		Output on changeover contact
Dimensions		18 mm
Weight		0.051 kg

Standards compliance

EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector

Internal
