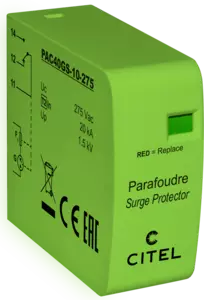

Type 2 AC Surge Protector for PCB mounting

PAC40GS-10-275

Part Number 8712607

Select another reference:

Electrical Properties Mechanical Properties Norms Deconnector Schemas

SPD type	IEC	2
Max. AC operating voltage	Uc	275 Vac
Operating current Continious current at Uc	Ic	< 0.1 mA
Nominal discharge current 15 x 8/20 µs impulses	In	20 kA
Max. discharge current max. withstand @ 8/20 µs by pole	Imax	40 kA
Protection level @ In (8/20µs)	Up	1.5 kV
Admissible short-circuit current	Isccr	25 000 A

Technology		Gas discharge tube
Connection to Network		Through soldering pins
Mounting		On Printed Circuit Board
Housing material		Thermoplastic UL94 V-0
Operating temperature	Tu	-40/+85°C
Protection rating		IP20
Disconnection indicator		1 mechanical indicator
Remote signaling of disconnection		Output on changeover contact
Weight		0.026 kg

Standards compliance

EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector

Internal

Description: Type 2 AC Surge Protector for PCB mounting
Standards compliance: EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Technology: Gas discharge tube
Remote signaling of disconnection: Output on changeover contact
SPD type : 2
Max. AC operating voltage : 275 Vac
Max. discharge current : 40 kA
Protection level : 1.5 kV
Admissible short-circuit current: 25 000 A
