Type 2 AC surge protector
PAC25S-10-420

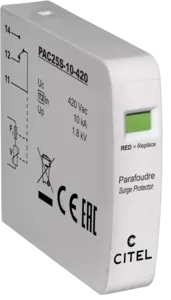

Type 2 AC Surge Protector for PCB mounting
PAC25S-10-420
Part Number
8711201
Type 2 AC surge protector
PCB mounting
Imax: 25 kA
Remote signaling
EN 50539-11 and IEC 61643-31 compliance*
Datasheet
Installation Sheet
Tender specifications
Contact Us
Select another reference:
PAC25S-10-150
PAC25S-10-275
PAC40GS-10-275
PAC40S-10-275
PAC40S-10-420
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Max. AC operating voltage
Uc
420 Vac
Operating current
Continious current at Uc
Ic
< 0.1 mA
Nominal discharge current
15 x 8/20 µs impulses
In
10 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
25 kA
Protection level
@ In (8/20µs)
Up
1.8 kV
Admissible short-circuit current
Isccr
25 000 A
Connection to Network
Through soldering pins
Mounting
On Printed Circuit Board
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Disconnection indicator
1 mechanical indicator
Remote signaling of disconnection
Output on changeover contact
Dimensions
9.6 mm
Weight
0.020 kg
Weight
0.034 kg
Standards compliance
EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Thermal disconnector
Internal
×
Description:
Type 2 AC Surge Protector for PCB mounting
Standards compliance:
EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Remote signaling of disconnection:
Output on changeover contact
SPD type :
2
Max. AC operating voltage :
420 Vac
Max. discharge current :
25 kA
Protection level :
1.8 kV
Admissible short-circuit current:
25 000 A
