Type 2 AC Surge Protector for PCB mounting

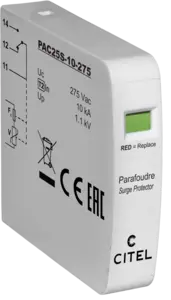

PAC25S-10-275
Part Number 8711207
PAC25S-10-275
  • Type 2 AC surge protector
  • PCB mounting
  • Imax: 25 kA
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance*



SPD type
IEC

2

Max. AC operating voltage
Uc

275 Vac

Operating current
Continious current at Uc
Ic

< 0.1 mA

Nominal discharge current
15 x 8/20 µs impulses
In

10 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

25 kA

Protection level
@ In (8/20µs)
Up

1.1 kV

Admissible short-circuit current
Isccr

25 000 A

Connection to Network

Through soldering pins

Mounting

On Printed Circuit Board

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Disconnection indicator

1 mechanical indicator

Remote signaling of disconnection

Output on changeover contact

Dimensions

9.6 mm

Weight

0.025 kg

Weight

0.051 kg

Standards compliance

EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector

Internal
