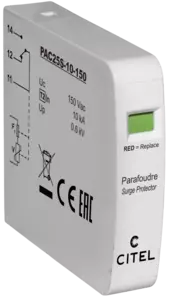

Type 2 AC Surge Protector for PCB mounting

PAC25S-10-150
Part Number 8711211
PAC25S-10-150
  • Type 2 AC surge protector
  • PCB mounting
  • Imax: 25 kA
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance*
Contact Us
SPD type
2
Max. AC operating voltage
Uc 150 Vac
Operating current
Continious current at Uc
 Ic < 0.1 mA
Nominal discharge current
15 x 8/20 µs impulses
 In 10 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 25 kA
Protection level
@ In (8/20µs)
 Up 0.6 kV
Admissible short-circuit current
 Isccr 25 000 A
Connection to Network
 Through soldering pins
Mounting
 On Printed Circuit Board
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Disconnection indicator
 1 mechanical indicator
Remote signaling of disconnection
 Output on changeover contact
Dimensions
 9.6 mm
Weight
 0.020 kg
Weight
 0.051 kg
Standards compliance
 EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Thermal disconnector
 Internal
