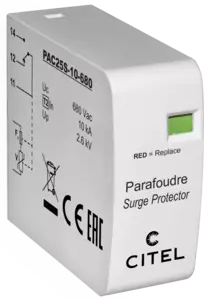

Type 2 AC Surge Protector for PCB mounting

PAC25S-10-680
Part Number: 8711204
PAC25S-10-680
  • Type 2 AC surge protector
  • PCB mounting
  • Imax: 25 kA
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance*



SPD type
2
Max. AC operating voltage
Uc 680 Vac
Operating current
Continious current at Uc
Ic < 0.1 mA
Nominal discharge current
15 x 8/20 µs impulses
In 10 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 25 kA
Protection level
@ In (8/20µs)
Up 2.6 kV
Admissible short-circuit current
Isccr 25 000 A
Connection to Network
Through soldering pins
Mounting
On Printed Circuit Board
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Disconnection indicator
1 mechanical indicator
Remote signaling of disconnection
Output on changeover contact
Dimensions
18 mm
Weight
0.020 kg
Weight
0.051 kg
Standards compliance
EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Thermal disconnector
Internal
