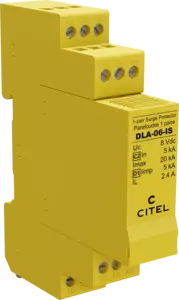

1-pair DIN rail plug-in Data surge protector

DLA-06-IS
Part Number 640151
DLA-06-IS
  • High current data transmission
  • Common mode and differential mode protection
  • Data lines, including those isolated from Earth
  • Compact DIN rail enclosure, high density protection
  • Protection of shield wire
  • Plug-out with line cut-off
  • Location and test categories: D1, C2, C3
  • IEC 61643-21 compliance
Contact Us
DLA surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. D3 types aim to realize fine protection and D2 types is specific for floating application. These products are 1-pair surge protectors with removable module for easy maintenance.
Network

Floating applications, E.g: RS422
Nominal line voltage
 Un

6 V
Max. DC operating voltage
 Uc

8 Vdc
Max. frequency, in the channel
 f max.

DC bis 3 MHz
Insertion loss

< 1 dB
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
 Imax

20 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
 Up

20 V
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
 Up

650 V
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
 Iimp

5 kA
Nominal Discharge Current
C2 (1.2/50us / 8/20µs), 10 applications, X-X (Line/Line)
 In

200 A
Nominal discharge current
C2 (1.2/50us / 8/20µs), 10 applications X-C (Line/Earth)
 In

5 kA
Max. Load current
 IL

2,4 A
Line resistance (± 10%)

0,05 Ohm
Capacitance
@1MHz, X-C (Line/Earth)
 C

< 25 pF
Network type

Data Communication
Technology

GDT+TVS diode
SPD configuration

1-pair+shielded
Connection to Network

By screw terminal: cross section 0.5-2.5mm²
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating and storage temperature

-40/+85°C
Ingress Protection rating

IP20 (NEMA 2)
Failsafe mode

Short-circuit
Disconnection indicator

Transmission interrupt - default mode 2
Spare module(s)

DLAM-06-IS
Dimensions

See diagram
Weight

0.087 kg
Standards compliance

IEC 61643-21 / EN 61643-21
