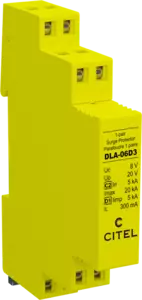

1-pair DIN rail plug-in Data surge protector

DLA-06D3/R
Part Number 6401014
DLA-06D3/R
  • High current data transmission
  • Common mode and differential mode protection
  • Data lines, including those isolated from Earth
  • Compact DIN rail enclosure, high density protection
  • Protection of shield wire
  • Plug-out with line cut-off
  • Location and test categories: D1, C2, C3
  • IEC 61643-21 compliance
Contact Us
DLA surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. D3 types aim to realize fine protection and D2 types is specific for floating application. These products are 1-pair surge protectors with removable module for easy maintenance.
Network

RS422, RS485
Nominal line voltage
 Un

6 V
Max. DC operating voltage
 Uc

8 Vdc
Cut-off frequency
-3dB, 100 ohm system
 f max.

> 115 MHz
Cut-off frequency
-1dB, 100 ohm system
 f max.

> 50 MHz
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
 Up

20 V
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
 Up

20 V
Max. capacitance
 C

< 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp

5 kA
Nominal discharge current
C2 Category
 In

5 kA
Line resistance (± 10%)

4.7 Ohm
Network type

Data Communication
Technology

GDT+TVS diode
SPD configuration

1-pair+shielded
Connection to Network

Spring terminal: cross section 0.5-2.5mm²
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating and storage temperature

-40/+85°C
Protection rating

IP20
Failsafe mode

Short-circuit
Disconnection indicator

Transmission interrupt - default mode 2
Spare module(s)

DLAM-06D3
Dimensions

See diagram
Standards compliance

IEC 61643-21 / EN 61643-21
