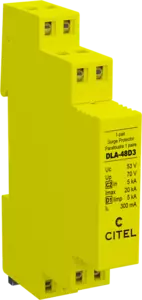

1-pair DIN rail plug-in Data surge protector

DLA-48D3/R
Part Number 6403024
DLA-48D3/R
  • High current data transmission
  • Common mode and differential mode protection
  • Data lines, including those isolated from Earth
  • Compact DIN rail enclosure, high density protection
  • Protection of shield wire
  • Location and test categories: D1, C2, C3
  • IEC 61643-21 compliance
Contact Us
DLA surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. D3 types aim to realize fine protection and D2 types is specific for floating application. These products are 1-pair surge protectors with removable module for easy maintenance.
Network
 IDSN, 48 V line
Nominal line voltage
 Un 48 V
Max. DC operating voltage
 Uc 53 Vdc
Cut-off frequency
-3dB, 100 ohm system
 f max. \> 115 MHz
Insertion loss
 < 1 dB
Max. load current @25°C
 IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 20 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
 Up 70 V
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
 Up 70 V
Max. capacitance
 C < 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 5 kA
Nominal discharge current
C2 Category
 In 5 kA
Line resistance (± 10%)
 4.7 Ohm
Network type
 Data Communication
Technology
 GDT+TVS diode
SPD configuration
 1-pair+shielded
Connection to Network
 Spring terminal: cross section 0.5-2.5mm²
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating and storage temperature
 -40/+85°C
Protection rating
 IP20
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt - default mode 2
Spare module(s)
 DLAM-48D3
Dimensions
 See diagram
Standards compliance
 IEC 61643-21 / EN 61643-21
