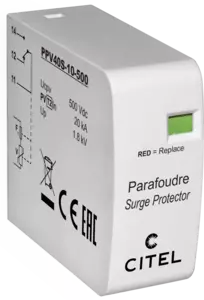

Type 2 PV Surge Protector for PCB mounting
PPV40S-10-500
PPV40S-10-500
Part Number: 8722202
  • Type 2 surge protector for Photovoltaic
  • PCB mounting
  • Imax: 40 and 25 kA
  • Application up to 1500 Vdc PV powerline
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance



SPD type
following IEC test
2
Max. PV operating voltage 500 Vdc
Max. PV operating voltage (star mounting)
1000 Vdc
PV Permanent Operating current
Current consumption at Ucpv
< 0.1 mA
Nominal discharge current
15 x 8/20 µs impulses
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
40 kA
Current withstand short circuit PV
15000 A
Protection level
@ In (8/20µs)
1.8 kV
Protection level (star mounting)
@ In (8/20µs)
3.6 kV

Connection to Network Through soldering pins
Mounting On Printed Circuit Board
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Disconnection indicator 1 mechanical indicator by pole
Remote signaling of disconnection Output on changeover contact
Dimensions
See diagram
Weight 0.051 kg
Standards compliance EN 50539-11 / IEC 61643-31
Thermal disconnector Internal
Fuses
Without
