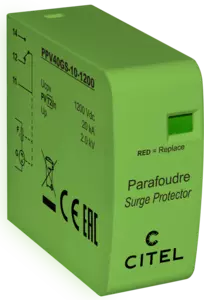

Type 2 PV Surge Protector for PCB mounting

PPV40GS-10-1200
Part Number 8722608
PPV40GS-10-1200
  • Type 2 surge protector for Photovoltaic
  • PCB mounting
  • N/PE module
  • Imax: 40 and 25 kA
  • Application up to 1500 Vdc PV powerline
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance*



SPD type
IEC

2

Max. PV operating voltage
Ucpv

1200 Vdc

PV Permanent Operating current
Current consumption at Ucpv
Icpv

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

40 kA

Current withstand short circuit PV
Iscpv

15 000 A

Protection level
@ In (8/20µs)
Up

2.8 kV

Technology

Gas discharge tube

Connection to Network

Through soldering pins

Mounting

On Printed Circuit Board

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Disconnection indicator

1 mechanical indicator

Remote signaling of disconnection

Output on changeover contact

Dimensions

See diagram

Weight

0.026 kg

Standards compliance

IEC 61643-31 / EN 50539-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector

Internal

Back-up protection device

Without
