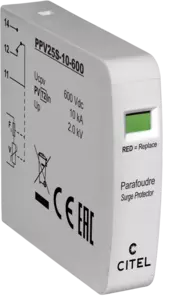

Type 2 PV Surge Protector for PCB mounting

PPV25S-10-600
Part Number 8721203
PPV25S-10-600
  • Type 2 surge protector for Photovoltaic
  • PCB mounting
  • Imax: 25 kA
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance*
Contact Us
SPD type
2
Max. PV operating voltage
 Ucpv 600 Vdc
Max. PV operating voltage (star mounting)
 Ucpv 1200 Vdc
PV Permanent Operating current
Current consumption at Ucpv
 Icpv < 0.1 mA
Nominal discharge current
15 x 8/20 µs impulses
 In 10 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 25 kA
Current withstand short circuit PV
 Iscpv 15 000 A
Protection level
@ In (8/20µs)
 Up 2 kV
Protection level (star mounting)
(+/-) / (+/PE or -/PE) @ In (8/20µs)
 Up 4 kV
Technology
 MOV
Connection to Network
 Through soldering pins
Mounting
 On Printed Circuit Board
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Disconnection indicator
 1 mechanical indicator
Remote signaling of disconnection
 Output on changeover contact
Dimensions
 See diagram
Weight
 0.041 kg
Standards compliance
 IEC 61643-31 / EN 50539-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Thermal disconnector
 Internal
Back-up protection device
Without
