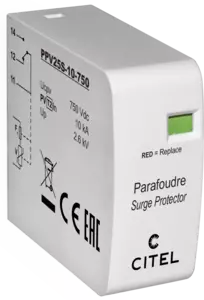

Type 2 PV Surge Protector for PCB mounting
PPV25S-10-750
PPV25S-10-750
Part Number: 8721205
  • Type 2 surge protector for Photovoltaic
  • PCB mounting
  • Imax: 40 and 25 kA
  • Application up to 1500 Vdc PV powerline
  • Remote signaling
  • EN 50539-11 and IEC 61643-31 compliance
Installation Sheet



SPD type 2
Max. PV operating voltage Ucpv 750 Vdc
Max. PV operating voltage (star mounting) Ucpv 1500 Vdc
PV Permanent Operating current Icpv < 0.1 mA
Nominal discharge current In 10 kA
Max. discharge current Imax 25 kA
Current withstand short circuit PV Iscpv 15000 A
Protection level Up 2.6 kV
Protection level (star mounting) Up 5.2 kV
Connection to Network Through soldering pins
Mounting On Printed Circuit Board
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Disconnection indicator 1 mechanical indicator by pole
Remote signaling of disconnection Output on changeover contact
Dimensions See diagram
Weight 0.051 kg
Standards compliance EN 61643-11 / IEC 61643-31
