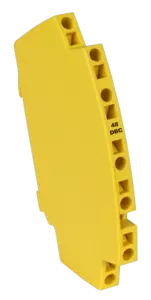

1-pair monobloc Telecom surge protector
DLC-48DBC
Part Number: 641114
- For 'DIN' rail mounting
- All types of Telephone and Data lines
- Monobloc housing and very compact
- Protection of shield wire
- IEC 61643-21 compliance
Installation Sheet
DLC compact surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail or on modular panel and are available for most of the transmission lines These products are 1-pair surge protectors with monobloc enclosure
Select another reference:
| Network |
Fipway, WorldFIP, FieldBus-H2 |
| Nominal line voltage |
48 V |
| Max. DC operating voltage | 53 V |
| Max. load current |
300 mA |
| Max. frequency |
> 20 MHz |
| Insertion loss |
< 1 dB |
| Max. discharge current max. withstand @ 8/20 µs by pole |
10 kA |
| Line inductance | non |
| Protection mode(s) |
Commun/Differential mode |
| Protection level @ In (8/20µs) |
70 V |
| Protection level L/N @ In (8/20µs) |
70 V |
| Protection level L/PE @ In (8/20µs) |
70 V |
| Impulse current 2 x 10/350µs Test - D1 Category |
2.5 kA |
| Nominal discharge current 8/20µs Test x 10 - C2 Category |
5 kA |
| line resistance | < 4.7 Ohm |
| Technology | GDT+Clamping diode |
| SPD configuration | 1-pair + shielded |
| Connection to Network | by spring - max. cross section 1.5 mm² |
| Format | DIN box |
| Mounting | Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Outdoor application |
False |
| Failsafe behavior | Short-circuit - transmision cut-off - fault mode 2 |
| Disconnection indicator | transmission interrupt |
| Remote signaling of disconnection | no |
| Max. number of pairs | 1 |
| Dimensions |
see diagram |
| Certification | UL listed |
| Standards compliance | IEC 61643-21 / EN 61643-21 / UL497A |
