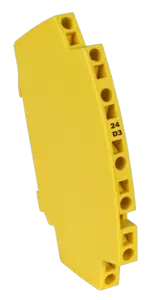

1-pair monobloc Telecom surge protector

DLC-24D3
Part Number 641103
DLC-24D3
  • High speed data transmission
  • Common mode and differential mode protection
  • Data lines, including those isolated from Earth
  • Compact DIN rail enclosure, high density protection
  • Protection of shield wire
  • Location and test categories: D1, C2, C3
  • IEC 61643-21 compliance
Contact Us
DLC compact surge protective devices (SPDs) are designed to protect terminal equipment connected to industrial buses, telecommunication lines or signalling applications from the effects of lightning and transient overvoltages. These SPDs are installed on symmetrical DIN rail, often within customer panels. DLC SPDs protect 1-pair applications and have a non-pluggable (monobloc) enclosure. Many types are available to cover most applications. D2 types are best suited to floating applications, D3 types offer full-mode protection across all lines with D3G types additionally providing specific protection for the signalling ground wire.
Network
 LS, 4-20 mA
Nominal line voltage
 Un 24 V
Max. DC operating voltage
 Uc 28 Vdc
Max. frequency
 f max. > 3 MHz
Insertion loss
 < 1 dB
Max. load current @25°C
 IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 10 kA
Line inductance (± 10 %)
 non
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
 Up 40 V
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
 Up 40 V
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 2.5 kA
Line/Line Nominal discharge current
C2 Category
In L/L 5 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE 5 kA
Line resistance (± 10%)
 4.7 Ohm
Network type
 Data Communication
Technology
 GDT+TVS diode
SPD configuration
 1-pair+shielded
Connection to Network
 By spring terminal - max. cross section 2.5mm² / AWG 13 (solid or stranded)
Format
 DIN box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Ingress Protection rating
 IP20 (NEMA 2)
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt - default mode 2
Dimensions
 See diagram
Weight
 0.029 kg
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497B
Certification
 UL listed / SIL
