1-pair monobloc Telecom surge protector

DLC-24D2
Part Number 641183
DLC-24D2
  • High speed data transmission
  • Common mode and differential mode protection
  • Data lines, including those isolated from Earth
  • Compact DIN rail enclosure, high density protection
  • Protection of shield wire
  • Location and test categories: D1, C2, C3
  • IEC 61643-21 compliance

DLC compact surge protective devices (SPDs) are designed to protect terminal equipment connected to industrial buses, telecommunication lines or signalling applications from the effects of lightning and transient overvoltages. These SPDs are installed on symmetrical DIN rail, often within customer panels. DLC SPDs protect 1-pair applications and have a non-pluggable (monobloc) enclosure. Many types are available to cover most applications. D2 types are best suited to floating applications, D3 types offer full-mode protection across all lines with D3G types additionally providing specific protection for the signalling ground wire.


Network
4-20 mA, 24 V analogic
Nominal line voltage
Un 24 V
Max. DC operating voltage
Uc 32 Vdc
Max. frequency
f max. > 50 MHz
Insertion loss
< 1 dB
Max. load current
@25°C
IL 750 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 20 kA
Line inductance
No
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
Up 60 V
Protection level
Following the test category C3 (IEC61643-21) - Line/PE
Up 650 V
Impulse current
2 x 10/350µs Test - D1 Category
Iimp 2.0 kA
Line/Line Nominal discharge current
C2 Category
In L/L 10 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
In L/PE 10 kA
Line resistance
< 1.2 Ohm
Network type
Data Communication
Technology

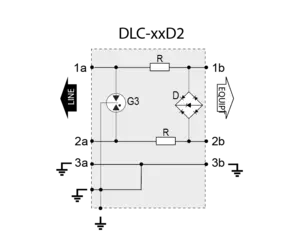

GDT+Clamping diode
SPD configuration
1-pair+shielded
Connection to Network
By spring - max. cross section 1.5mm²
Format
DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Ingress Protection rating
IP20 (NEMA 2)
Failsafe mode
Short-circuit
Disconnection indicator
Transmission interrupt - default mode 2
Dimensions
See diagram
Weight
0.029 kg
Standards compliance
IEC 61643-21 / EN 61643-21
Certification
SIL
