DIN Rail Telecom/Data surge protector
DLC-06DBC

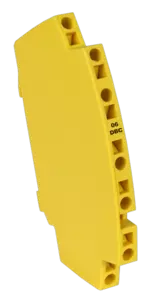

1-pair monobloc Telecom surge protector
DLC-06DBC
Part Number:
641111
For 'DIN' rail mounting
All types of Telephone and Data lines
Monobloc housing and very compact
Protection of shield wire
IEC 61643-21 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DLC compact surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail or on the modular panels and are available for most of transmission lines. These products are 1-pair surge protectors with monobloc enclosure.
Select another reference:
DLC-06D3
DLC-06DBC
DLC-12D3
DLC-170
DLC-24D3
DLC-48D3
DLC-48DBC
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
MIC/T2, 10BaseT
Nominal line voltage
Un
6 V
Max. DC operating voltage
Uc
8 Vdc
Max. frequency
f max.
> 20 MHz
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Line inductance
No
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
Up
25 V
Impulse current
2 x 10/350µs Test - D1 Category
Iimp
2.5 kA
Line/Line Nominal discharge current
C2 Category
In L/L
5 kA
Line/Ground Nominal discharge current
8/20µs Test x 10 - C2 Category
In L/PE
5 kA
Line resistance
< 4.7 Ohm
Technology
GDT+Clamping diode
SPD configuration
1-pair+shielded
Connection to Network
By spring - max. cross section 1.5mm²
Format
DIN box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Short-circuit - transmision cut-off - fault mode 2
Disconnection indicator
Transmission interrupt
Spare module(s)
DLAM-06D3
Dimensions
See diagram
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497A
Certification
UL listed / SIL
×
Description:
1-pair monobloc Telecom surge protector
Standards compliance:
IEC 61643-21 / EN 61643-21 / UL497A
Certification:
UL listed / SIL
Technology:
GDT+Clamping diode
SPD configuration:
1-pair+shielded
Network:
MIC/T2, 10BaseT
Max. DC operating voltage:
8 Vdc
Max. discharge current :
10 kA
CITEL
Reference:
DLC-06DBC
Part Number: :
641111
Or equivalent
