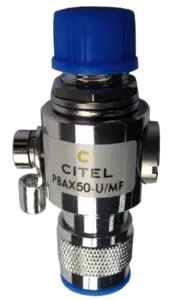

Coaxial surge protector DC-2.5 GHz

P8AX50-U/MF
Part Number 611811
P8AX50-U/MF
  • RF coaxial surge protector
  • 2.5 GHz
  • 770 W
  • Connectors : UHF
  • Low insertion loss
  • Removale GDT
  • DC-pass
  • Bi-directional protection
Contact Us
The P8AX series is based on gas discharge tube (GDT) and designed for RF line surge protection. Available for different power and with coaxial connectors, P8AX units could be provide in feedthrough mounting version and with various impedance.
Max. DC operating voltage
 Uc

400 Vdc
Frequency range
 f

DC-2.5 GHz
Insertion loss

< 0.2 dB
Return loss

20 dB
Impedance

50 ohms
VSWR

<1.2
Max. load current @25°C
 IL

10 A
Residual Current
Leakage current to Ground
 Ipe

None
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Protection mode(s)

Common mode
Protection level
@1kV/µs (C3)
Up

< 1200 V
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp

1 kA
Nominal discharge current
C2 Category
 In

5 kA
Max Power

770 W
Typical let through energy
(50 ohms) input 4kV 1.2/50μs - 2kA 8/20μs

1100 µJ
DC Pass

Yes
Insulation resistance
 IR

≥10 GOhms
Technology

Gas discharge tube
Connection to Network

Connector UHF Male/Female
Mounting

Feedthrough
Housing material

Brass/Surface plating: Cu Zn Sn
Operating temperature
 Tu

-40/+85°C
Protection rating

IP65
Outdoor application

Yes
Failsafe mode

Short-circuit
Disconnection indicator

Transmission interrupt
Dimensions

See diagram
Standards compliance

IEC 61643-21 / EN 61643-21 / UL497E
RohS compliance

Yes
