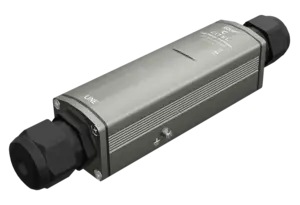

Outdoor 10 Gigabit POE++ Surge Protective Device - Metallic housing and plastic cable glands

Part Number: 581546
LAN-10G-POE-CRPS
LAN-10G-POE-CRPS
LAN-10G-POE-CRPS
LAN-10G-POE-CRPS
LAN-10G-POE-CRPS
  • POE++ Compatible (IEEE 802.3bt)
  • 10Gb (5-100m) with Cat6A S/FTP cabling
  • Shielded RJ45 connectors
  • Outdoor applications, IP67 (NEMA 6)
  • Plastic enclosure
  • Conforms to IEC/EN 61643-21
  • SPD categories D1, C3, C2, C1
  • 16kA total surge discharge capability
The LAN-10G-POE-CR(PS) is an IP67 outdoor PoE++ surge protector for Ethernet up to 10 Gbps. With shielded RJ45 connectors and a weatherproof metal case, it ensures reliable protection in harsh environments and demanding PoE applications.

Network

10Gb/s on Cat6A S/FTP cabling
Protection modes (network)

CM / DM
Protection modes (POE)

CM / DM (common mode / differential mode)
Transmission standard

IEEE 802.3bt
Lightning Protection Zones (LPZ)

0 - 3
Max. operating voltage (DATA)
 Uc

3.3 Vdc
Max. operating voltage (POE)
 Uc

60 Vdc
Max. frequency, in the channel
 f max.

500 MHz
Max. data rate

10 Gbps
Max. load current @25°C
 IL

2 A
Max. POE power (4PPOE)

100 W
Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications X-X (Line/Line)
 In

300V / 150A
Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications, X-C (Pair-Pair, POE)
 In

300V / 150A
Nominal discharge current
C2 (1.2/50us / 8/20µs), 10 applications X-C (Line/Earth)
 In

4 kV / 2 kA
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
 Imax

2 kA
Max. discharge current
max. withstand @ 8/20 µs, 8X-C (1&2+3&6+4&5+7&8 to Earth)
 Imax Total

16 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
 Up

< 10 V
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
 Up

< 700 V
Protection Level
C3 (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
 Up

< 80 V
Protection Level
C2 (1.2/50µs / 8/20µs), 10 applications, Y-C (Line-Earth)
 Up

< 1000 V
Protection Level
C1 (1.2/50µs & 8/20µs), 300 applications, (Pair-Pair, POE)
 Up

< 98 V
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
 Iimp

500 A
Line resistance (± 10%)

~ 0 ohms
Capacitance
@1MHz, X-C (Line/Earth)
 C

< 5 pF

Technology

GDT+TVS diode
SPD configuration

8 wires+shielded
Connection to Network

RJ45 shielded connectors input/output
Cable glands

Plastic/Rubber
Format

Metallic box with connectors input/output
Mounting

Wall / Pole / Plate
Accessory(s) provided

U' bracket
Operating temperature
 Tu

-40/+85°C
Ingress Protection rating

IP67 (NEMA 6)
Outdoor application

Yes
Failsafe mode

Transmission cut-off - Fault mode 2 (short-circuit)
Pinout

(1-2)(3-6)(4-5)(7-8)
Dimensions

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B / IEEE 802.3af/3at/3bt, ANSI/TIA-568-c.1
Environmental standards

EU RoHS
