Outdoor POE++ in-line surge protector

CRMJ8-POE-C6A
Part Number 581542
CRMJ8-POE-C6A
  • POE++ Compatible (IEEE 802.3bt) -10Gb (5-100m) with Cat6A S/FTP cabling
  • RJ45 connectors
  • Outdoor applications, IP66 (NEMA 4/4X)
  • Metallic enclosure
  • Conforms to IEC/EN 61643-21
  • SPD categories D1, C3, C2, C1

The CRMJ8-POE is an outdoor PoE surge protector in metal enclosure designed to protect sensitive data-processing equipment connected to a PoE (Power over Ethernet) network from transient over voltages. The CRMJ8-POE surge protector is deployed in signal network applications with data transmission speeds up to 10000 and is equipped with high quality shielded RJ45 connectors.


Network

10Gb/s on Cat6A S/FTP cabling

Protection modes (network)

CM / DM

Protection modes (POE)

CM / DM (common mode / differential mode)

Transmission standard

IEEE 802.3bt

Lightning Protection Zones (LPZ)

0 - 3

Max. DC operating voltage
Uc

8 Vdc

Max. operating voltage (POE)
Uc

60 Vdc

Max. frequency
f max.

500 MHz

Max. data rate

10 Gbps

Max. load current @25°C
IL

2 A

Max. POE power (4PPOE)

90 W

Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
Imax

2 kA

Max. discharge current
max. withstand @ 8/20 µs, 8X-C (1&2+3&6+4&5+7&8 to Earth)
Imax Total

16 kA

Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up

< 20 V

Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up

< 700 V

Protection Level
C3 (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
Up

< 70 V

Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
Iimp

500 A

Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications X-X (Line/Line)
In

1kV / 500A

Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications, X-C (Pair-Pair, POE)
In

200 V / 100 A

Nominal discharge current
C2 (1.2/50us / 8/20µs), 10 applications X-C (Line/Earth)
In

4 kV / 2 kA

Line resistance (± 10%)

~ 0 ohms

Capacitance
@1MHz, X-C (Line/Earth)
C

< 5 pF

Technology

GDT+TVS diode

SPD configuration

8 wires+shielded

Connection to Network

RJ45 shielded connectors Female input/output

Cable glands

Plastic/Rubber

Format

Metallic Enclosure with connectors input/output

Mounting

Wall

Accessory(s) provided

screw + nut + cable shoe

Housing material

Metallic

Operating temperature
Tu

-40/+85°C

Ingress Protection rating

IP66 (NEMA 4/4X)

Outdoor application

Yes

Failsafe mode

Transmission cut-off - Fault mode 2 (short-circuit)

Pinout

(1-2)(3-6)(4-5)(7-8)

Dimensions

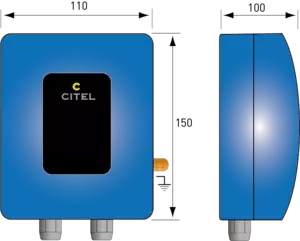

See diagram

Weight

0.5 kg / 1.1 lbs

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B / IEEE 802.3af/3at/3bt, ANSI/TIA-568-c.1

UL Category

QVGQ - Isolated Loop Circuit Protectors

UL File Number

E184939

Certification

UL 497B
