POE surge protector
CWMJ8-POE-C6A
10 gigabit POE ++ surge protector
CWMJ8-POE-C6A
Part Number
581544
POE++ Compatible (IEEE 802.3bt) -10Gb (5-100m) with Cat6A S/FTP cabling
Shielded RJ45 connectors
Outdoor applications, IP66 (NEMA 4/4X)
Plastic enclosure, UL94-V0
Conforms to IEC/EN 61643-21
SPD categories D1, C3, C2, C1
Datasheet
E184939-20060721-CertificateofCompliance.pdf
CITEL_Certif_UL_CWMJ8-POE-pdf
Installation Sheet
Tender specifications
Contact Us

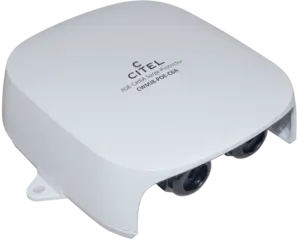

The new CWMJ8-POE-C6A product is designed to protect POE ++ and Ethernet Category 6A networks. The product is equipped with RJ45 shielded connectors for fast wiring. It completes the existing range of CITEL PoE surge protectors (CRMJ8-POE-C6A with metal enclosure, for outdoor application & MJ8-POE-C6A for indoor use). Based on hybrid diagram made with gas tubes and low capacitance clamping diodes, this surge protector is ideally suited for PoE-connected devices as IP cameras or WiFi hotspots. The product is designed for wall mounting and outdoor application, notably through his protection rating (IP66) and its UV rated thermoplastic (UL94-V0). Note, thanks to its design and modern appearance the product can also be installed indoor.
Select another reference:
CRMJ8-POE-C6A
CWMJ8-POE-C6A
LAN-10G-POE-G-C
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
10Gb/s on Cat6A S/FTP cabling
Protection modes (network)
CM / DM (common mode / differential mode)
Protection modes (POE)
CM / DM (common mode / differential mode)
Transmission standard
IEEE 802.3bt
Lightning Protection Zones (LPZ)
0 - 3
Max. DC operating voltage
Uc
8 Vdc
Max. operating voltage (POE)
Uc
60 Vdc
Max. frequency
f max.
500 MHz
Max. data rate
10 Gbps
Max. load current
@25°C
IL
2 A
Max. POE power (4PPOE)
90 W
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
Imax
2 kA
Protection Level
C3 category (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up
< 70 V
Protection level
C3 category (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up
< 70 V
Protection Level
C3 Category (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
Up
< 100 V
Impulse current
D1 category (10/350μs), 2 applications, X-C (Line/Earth)
Iimp
500 A
Nominal discharge current
C1 category (8/20μs), 300 applications X-X (Line/Line)
In
1kV / 500A
Nominal discharge current
C2 category (8/20μs), 10 applications X-C (Line/Earth)
In
4 kV / 2 kA
Line resistance (± 10%)
0 Ohm
Capacitance
@1MHz, X-C (Line/Earth)
C
< 5 pF
Technology
GDT+Clamping diode
SPD configuration
8 wires+shielded
Connection to Network
RJ45 shielded connectors Female input/output
Cable glands
Plastic/Rubber
Format
Plastic Enclosure with connectors input/output
Mounting
Wall / Plate
Accessory(s) provided
screw + nut + cable shoe
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP66
Outdoor application
Yes
Failsafe mode
Short-circuit
Pinout
(1-2)(3-6)(4-5)(7-8)
Dimensions
See diagram
Weight
0.29 kg / 0.64 lbs
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497B / IEEE 802.3af/3at/3bt, ANSI/TIA-568-c.1
Certification
UL 497B
×
Description:
10 gigabit POE ++ surge protector
Standards compliance:
IEC 61643-21 / EN 61643-21 / UL497B / IEEE 802.3af/3at/3bt, ANSI/TIA-568-c.1
Certification:
UL 497B
Technology:
GDT+Clamping diode
SPD configuration:
8 wires+shielded
Network:
10Gb/s on Cat6A S/FTP cabling
Transmission standard:
IEEE 802.3bt
Lightning Protection Zones (LPZ):
0 - 3
Max. DC operating voltage:
8 Vdc
