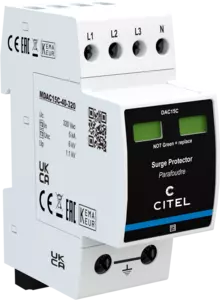

Type 2 (or 3) AC surge protector - 3-phase+N

DAC15CS-40-320
Part Number 821610322
DAC15CS-40-320
  • Compact 3-phase+N Type 2 (or 3) surge protector
  • In: 5 kA
  • Imax: 15 kA
  • Common mode
  • Pluggable module
  • Remote signaling
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
The DAC15C Type 2 or Type 3 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC15C SPDs are available have a discharge capacity of 15 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
SPD type
2 (or 3)
Network
 230/400 V
AC system
 TN
Max. AC operating voltage
Uc 320 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 1 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 15 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 60 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 10 kV
Protection mode(s)
 L/PE
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.1 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 1.1 kV
Admissible short-circuit current
 Isccr 10 000 A
Network type
 AC
Technology
 MOV
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 2 mechanical indicators - Red/Green
Spare module(s)
 MDAC15C-40-320
Remote signaling of disconnection
 Output on changeover contact
Wiring for remote signaling
 1.5 mm² max.
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
 See diagram - 2TE (EN43880)
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 KEMA
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
20 A min. - 125 A max. - Fuses type gG
