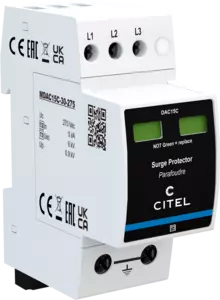

Type 2 (or 3) AC surge protector - 3-phase

DAC15CS-30-275
Part Number 821610223
DAC15CS-30-275
  • Compact 3-phase Type 2 (or 3) surge protector
  • In: 5 kA
  • Imax: 15 kA
  • Common mode
  • Pluggable module
  • Remote signaling
  • IEC 61643-11, EN 61643-11, UL1449 ed.5 compliance

The DAC15C Type 2 or Type 3 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC15C SPDs are available have a discharge capacity of 15 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.


SPD type
IEC

2 (or 3)

Network

230/400 V

AC system

TN

Max. AC operating voltage
Uc

275 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

< 1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

15 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

60 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV

Protection mode(s)

L/PE

Protection level N/PE
@ In (8/20µs)
Up N/PE

0.9 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.2 kV

Admissible short-circuit current
Isccr

10 000 A

Network type

AC

Technology

MOV

SPD configuration

3-phase

Connection to Network

By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)

Format

Plug-in modular box

Plugable

Yes

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

2 mechanical indicators - Red/Green

Spare module(s)

MDAC15C-30-275

Remote signaling of disconnection

Output on changeover contact

Wiring for remote signaling

1.5 mm² max.

Max. Voltage/Current for remote signaling

250 V / 0.5 A (AC) / 30 V / 3 A (DC)

Dimensions

See diagram - 2TE (EN43880)

Weight

0.221 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

20 A min. - 125 A max. - Fuses type gG
