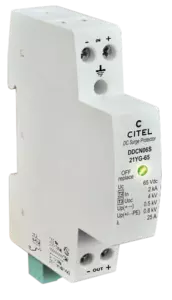

Compact Type 2 (or 3) DC surge protector - 65 V - Monobloc

DDCN06S-21YG-65
Part Number 70134052
DDCN06S-21YG-65
  • DC Power Type 2+3 SPD
  • 2-port configuration (series mounting)
  • Compact and Cost effective
  • In/Imax: 2 kA/6 kA
  • Max. load current: 25A
  • Disconnection + AC line cut
  • Remote signaling
  • EN 61643-11, IEC 61643-11 compliance

The devices of the DDCN series are SPDs of type 2+3 and designed for use in applications with nominal voltages of 24 or 48 Vdc, such as sensitive sensors, control systems in industry, etc.. The DDCN can be used as 1-port or 2-port SPD. The generously dimensioned connection cage with its capacity for cable cross-sections of up to 10 mm² ensures practical installation. The 2-pole DC surge arresters are designed for DIN rail mounting and occupy only 1 HP. The certification as type 2 + 3 was based on tests with similar parameters, which are also used for AC SPDs, but also according to the draft of P DIN IEC 61643-41 "Surge protective devices for use in low-voltage DC installations - Requirements and tests".


Nominal DC voltage
Un-dc

48 Vdc

Max. DC operating voltage
Uc

65 Vdc

Max. load current @25°C
IL

25 A

Residual Current
Leakage current to Ground
Ipe

None

Nominal discharge current
15 x 8/20 µs impulses
In

2 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

6 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

4 kV

Connection mode(s)

+/-/PE

Protection level +/-
@ In (8/20µs)
Up

0.5 kV

Protection level +/PE (-/PE)
@ In (8/20µs)
Up

0.8 kV

Admissible short-circuit current
Isccr

10 000 A

Network type

DC

SPD configuration

Single phase

Connection to Network

By screw terminals: 1.5-10mm²

Plugable

No

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection from DC network

Disconnection indicator

Green LED OFF

Remote signaling of disconnection

output on NC contact

Dimensions

See diagram - 1TE (EN43880)

Weight

0.089 kg

Standards compliance

IEC 61643-11 / prIEC 61643-41

Thermal disconnector

Internal

Back-up protection device

Fuses type gG - 25A
