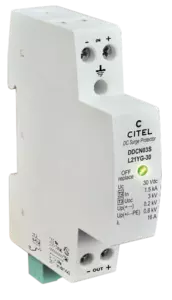

Compact Type 2 (or 3) DC surge protector - 30 V - Disconnection and AC line cut-off
Part Number: 70125042
DDCN03S-L21YG-30
- DC Power Type 2 (or 3) SPD
- 2-port configuration (series mounting)
- Compact and Cost effective
- In/Imax: 1.5 kA/ 3 kA
- Max. load current: 16A
- Disconnection
- Remote signaling
- EN 61643-11, IEC 61643-11 compliance
The devices of the DDCN series are SPDs of type 2+3 and designed for use in applications with nominal voltages of 24 or 48 Vdc, such as sensitive sensors, control systems in industry, etc.. The DDCN can be used as 1-port or 2-port SPD. The generously dimensioned connection cage with its capacity for cable cross-sections of up to 10 mm² ensures practical installation. The 2-pole DC surge arresters are designed for DIN rail mounting and occupy only 1 HP. The certification as type 2 + 3 was based on tests with similar parameters, which are also used for AC SPDs, but also according to the draft of P DIN IEC 61643-41 "Surge protective devices for use in low-voltage DC installations - Requirements and tests".
Certificates
Datasheet
|
Nominal DC voltage
|
Un-dc | 24 Vdc |
|
Max. DC operating voltage
|
Uc | 30 Vdc |
|
Max. load current @25°C
|
IL | 16 A |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 1.5 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 3 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 3 kV |
|
Connection mode(s)
|
+/-/PE |
|
|
Protection level +/-
@ In (8/20µs)
|
Up | 0.2 kV |
|
Protection level +/PE (-/PE)
@ In (8/20µs)
|
Up | 0.8 kV |
|
Admissible short-circuit current
|
Isccr | 10 000 A |
|
Network type
|
DC |
|
|
Connection to Network
|
By screw terminals: 1.5-10mm² |
|
|
Plugable
|
No |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Outdoor application
|
No |
|
|
Failsafe mode
|
Disconnection and AC line cut-off |
|
|
Disconnection indicator
|
Green LED OFF |
|
|
Remote signaling of disconnection
|
output on NC contact |
|
|
Dimensions
|
See diagram - 1TE (EN43880) |
|
Standards compliance
|
IEC 61643-11 / prIEC 61643-41 |
|
Thermal disconnector
|
Internal |
|
|
Back-up protection device
|
Fuse type gG - 16 A |
