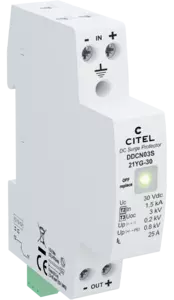

Compact Type 2 (or 3) DC surge protector - 30 V - Monobloc
DDCN03S-21YG-30
Part Number 70124042
- DC Power Type 2 (or 3) SPD
- 2-port configuration (series mounting)
- Compact and Cost effective
- In/Imax: 1.5 kA/ 3 kA
- Max. load current: 25A
- Disconnection
- Remote signaling
- EN 61643-11, IEC 61643-11 compliance
The devices of the DDCN series are SPDs of type 2+3 and designed for use in applications with nominal voltages of 24 or 48 Vdc, such as sensitive sensors, control systems in industry, etc.. The DDCN can be used as 1-port or 2-port SPD. The generously dimensioned connection cage with its capacity for cable cross-sections of up to 10 mm² ensures practical installation. The 2-pole DC surge arresters are designed for DIN rail mounting and occupy only 1 HP. The certification as type 2 + 3 was based on tests with similar parameters, which are also used for AC SPDs, but also according to the draft of P DIN IEC 61643-41 "Surge protective devices for use in low-voltage DC installations - Requirements and tests".
Select another reference:
Nominal DC voltage
|
Un-dc | 24 Vdc |
Max. DC operating voltage
|
Uc | 30 Vdc |
Max. load current
@25°C
|
IL | 25 A |
Residual Current
Leakage current to Ground
|
Ipe | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 1.5 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 3 kA |
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 3 kV |
Connection mode(s)
|
+/-/PE | |
Protection level +/-
@ In (8/20µs)
|
Up | 0.2 kV |
Protection level +/PE (-/PE)
@ In (8/20µs)
|
Up | 0.8 kV |
Admissible short-circuit current
|
Isccr | 10 000 A |
Network type
|
DC | |
Connection to Network
|
By screw terminals: 1.5-10mm² | |
Plugable
|
No | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Outdoor application
|
No | |
Failsafe mode
|
Disconnection from DC network | |
Disconnection indicator
|
Green LED OFF | |
Remote signaling of disconnection
|
output on NC contact | |
Dimensions
|
See diagram - 1TE (EN43880) | |
Weight
|
0.089 kg |
Standards compliance
|
IEC 61643-11 / prIEC 61643-41 |
Thermal disconnector
|
Internal | |
Back-up protection device
|
Fuses type gG - 25A |
