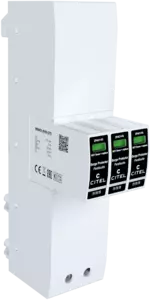

Type 1+2+3 AC surge protector - 3-phase
Part Number: 64214
ZPAC1-8VG-30-275
- Type 1+2+3 combined SPD based on a gas-filled spark gap
- 10-year guarantee
- Discharge capacity per pole: Iimp= 8 kA (10/350 μs)
- Operating and leakage current-free
- Individually pluggable protection modules: sustainable solution, cost-effective maintenance
- Complies with the IEC 61643-11 and EN 61643-11 standards
- VDE-AR-N 4100 compliant “Use of surge protective devices (SPD) type 1 in main power supply systems”
The ZPAC1-8VG-30-275 with 8 kA discharge capacity per pole is a space-saving and cost-effective solution for buildings with lightning protection classes III+IV and is designed for installation on 40 mm busbar systems. Thanks to the integrated CITEL VG technology, the ZPAC1-8VG-30-275, like the DS253VG-300 as a type 1+2+3 combined SPD, combines all three protection classes in one device and thus offers very good protection against surges for the downstream system. The ZPAC1-8VG-30-275 fulfills the VDN guideline for lightning protection class III+IV and can therefore be used in the pre-metering area. This makes the ZPAC ideally suited for installation in private and commercial buildings.
Certificates
Datasheet
Installation Manual
|
SPD type
|
IEC | 1+2+3 |
|
Network
|
230/400 V 3-phase |
|
|
AC system
|
TNC |
|
|
Nominal line voltage
|
Un | 230/400 Vac |
|
Max. AC operating voltage
|
Uc | 275 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac withstand |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Operating current
Continious current at Uc
|
Ic | None |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 50 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 8 kA |
|
Total lightning current
max. total withstand @ 10/350µs
|
Itotal | 24 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
|
Specific energy by pole
max. withstand 10/350 µs
|
W/R | 16 kJ/ohm |
|
Protection mode(s)
|
L/PE |
|
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.5 kV |
|
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.9 kV |
|
Admissible short-circuit current
|
Isccr | 50 000 A |
|
Technology
|
VG Technology (MOV+GSG) |
|
|
SPD configuration
|
3-phase |
|
|
Connection to Network
|
By 40mm busbar and wire for PE: 6-35mm² (50mm²) |
|
|
Format
|
Plug-in modular box |
|
|
Mounting
|
40 mm busbar systems |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Outdoor application
|
No |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Disconnection indicator
|
1 mechanical indicator by pole |
|
|
Spare module(s)
|
MDAC1-8VG-275 |
|
|
Remote signaling of disconnection
|
none |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 5ed. |
|
|
Certification
|
KEMA |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
max. 315 A (gL/gG) |
