Type 1+2+3 AC surge protector

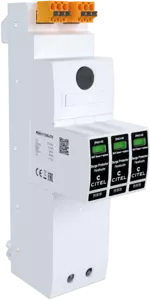

ZPAC1-13VG-PRO-U
Type 1+2+3 AC surge protector - 3-phase+N
ZPAC1-13VG-PRO-U
Part Number:
64087
Type 1 + 2 + 3 multipolar surge protector
For 40 mm Busbar system
Gas Discharge Tube technology
Iimp 12,5 kA (10/350 μs)
RFZ and APZ Power Supply
Plug-in protection modules
Integrated safety device
Tool-free installation
"DE-AR-N 4100 compliant" Use of overvoltage protection devices (SPD) type 1 in main power supply systems
Compliance IEC 61643-11 and EN 61643-11
CITEL_Certif_EU_ZPAC_PRO.pdf
Installation Sheet
Contact Us
Select another reference:
ZPAC1-13VG-31-275
ZPAC1-13VG-PRO-SU
ZPAC1-13VG-PRO-SUM
ZPAC1-13VG-PRO-U
ZPAC1-8VG-31-275
ZPAC1-8VG-PRO-SU
ZPAC1-8VG-PRO-SUM
ZPAC1-8VG-PRO-U
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2+3
Network
230/400 V 3-phase+N
AC system
TT-TNS
Nominal line voltage
Un
230/400 Vac
Max. AC operating voltage
Uc
275 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
440 Vac withstand
Temporary Over Voltage N/PE (TOV HT)
UT
1200 V/300A/200 ms withstand
Residual Current
Ipe
None
Operating current
Ic
None
Follow current
If
None
Nominal discharge current
In
20 kA
Max. discharge current
Imax
50 kA
Impulse current by pole
Iimp
12.5 kA
Total lightning current
Itotal
50 kA
Withstand on Combination waveform IEC 61643-11
Uoc
6 kV
Withstand on overvoltages IEEE C62.41.1
20 kV
Specific energy by pole
W/R
40 kJ/ohm
Connection mode(s)
L/N and N/PE
Protection mode(s)
Common/Differential mode
Protection level L/N
Up L/N
1.5 kV
Protection level L/PE
Up L/PE
1.5 kV
Residual voltage L/N at 5 kA
Up-5kA
0.7 kV
Admissible short-circuit current
Isccr
50 000 A
Technology
VG Technology (MOV+GSG)
SPD configuration
3-phase+Neutral
Connection to Network
By 40mm busbar and wire for PE: 10-35mm²
Format
Plug-in modular box
Mounting
40 mm busbar systems
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole
Spare module(s)
ZMDAC1-13VG-PRO-275
Remote signaling of disconnection
none
Dimensions
See diagram
Weight
0.7401 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Certification
EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
max. 315 A (gL/gG)
