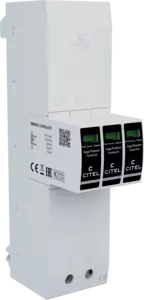

Type 1+2+3 AC surge protector - 3-phase+N

ZPAC1-13VG-31-275
Part Number 64004
ZPAC1-13VG-31-275
  • Type 1+2+3 combined SPD based on a gas-filled spark gap
  • 10-year guarantee
  • Discharge capacity per pole: Iimp= 12.5 kA (10/350 μs)
  • Safe disconnecting device
  • Operating and leakage current-free
  • Can be used for lightning protection classes III + IV
  • Cost-effective maintenance thanks to individual plug-in modules
  • Complies with the IEC 61643-11 and EN 61643-11 standards
  • Complies with VDE-AR-N 4100 “Use of surge protective devices (SPD) type 1 in main power supply systems”

The ZPAC1 range is a type 1 + 2 + 3 pluggable surge protector for 230/400 3-phase AC network, intended to be integrated into electrical panels equipped with standard 40mm busbars. The solution is available in two impulse current (Iimp) of 12.5 kA or 8kA. Compact, economical and ultra fast implementation, it is intended for business/household buildings equipped with lightning rod. Equipped with exclusive CITEL’s VG technology, the range achieves an high protection level, guaranteeing a maximum protection efficiency, a absence of follow and leakage currents, a simplification of use (no additional lightning arrester required) and a maximum lifetime. The pluggable configuration (quick and easy maintenance) and VG technology (maximum protection efficiency) used by ZPAC1 make it the most relevant choice for electrical contractors and users.


SPD type
IEC

1+2+3

Network

230/400 V 3-phase+N

AC system

TT-TNS

Nominal line voltage
Un

230/400 Vac

Max. AC operating voltage
Uc

275 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac withstand

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms withstand

Residual Current
Leakage current to Ground
Ipe

None

Operating current
Continious current at Uc
Ic

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

50 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

12.5 kA

Total lightning current
max. total withstand @ 10/350µs
Itotal

50 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

6 kV

Withstand on overvoltages IEEE C62.41.1

20 kV

Specific energy by pole
max. withstand 10/350 µs
W/R

40 kJ/ohm

Connection mode(s)

L/N and N/PE

Protection mode(s)

Common/Differential mode

Protection level L/N
@ In (8/20µs)
Up L/N

1.5 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.5 kV

Residual voltage L/N at 5 kA
@ 5 kA (8/20µs)
Up-5kA

0.7 kV

Admissible short-circuit current
Isccr

50 000 A

Technology

VG Technology (MOV+GSG)

SPD configuration

3-phase+Neutral

Connection to Network

By 40mm busbar and wire for PE: 6-35mm² (50mm²)

Format

Plug-in modular box

Mounting

40 mm busbar systems

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator by pole

Spare module(s)

ZMDAC1-13VG-275

Remote signaling of disconnection

none

Dimensions

See diagram

Weight

0.7401 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 5ed.

Certification

KEMA

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

max. 315 A (gL/gG)
