Type 1+2 AC surge protector - 3-phase+N

DS504E-400
Part Number 64020
  • Type 1 + 2 multipolar AC surge protector
  • Iimp total : 200 kA (10/350µs impulse)
  • Imax : 150 kA (8/20µs impulse)
  • Internal disconnections, status indicator and remote signaling
  • Conforme NF EN 61643-11, IEC 61643-11, UL1449 ed.5
Contact Us
The DS500E range of surge protectors are Type 1 + 2, very high power, they are intended to be installed at the entry of the Low Voltage installation. They are used to protect single-phase, three-phase or three-phase + Neutral networks in common mode or in common and differential mode. The 'Multi-Varistor' technology used allows the best possible behavior for the LV network (no follow-on current). The DS500E range is installed on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.
SPD type
1+2
Network
 230/400 V 3-phase+N
AC system
 IT
Nominal line voltage
 Un 400 Vac
Max. AC operating voltage
Uc 440 Vac
Max. load current
if series connection
 IL 100 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 580 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 770 Vac disconnection
Operating current
Continious current at Uc
 Ic < 3 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 50 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 200 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp 50 kA
Total lightning current
max. total withstand @ 10/350µs
 Itotal 200 kA
Specific energy by pole
max. withstand 10/350 µs
 W/R 156 kJ/ohm
Connection mode(s)
 L/PE and N/PE
Protection mode(s)
 Common mode
Protection level N/PE
@ In (8/20µs)
 Up N/PE 2.2 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 2.2 kV
Admissible short-circuit current
 Isccr 50 000 A
Technology
 MOV
SPD configuration
 3-phase
Connection to Network
 By screw terminals: 6-35mm² / by bus
Format
 1-pole modular box assembled
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator by pole
Remote signaling of disconnection
 Output on changeover contact

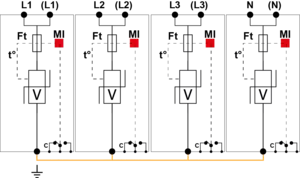

Dimensions
 See diagram
Weight
 2.876 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses Type gG - 500 A
