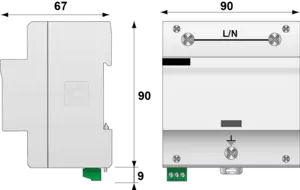

Type 1+2 AC surge protector - 1-pole

DS500E-230
Part Number 500230
DS500E-230
  • Type 1+2 unipolar AC surge protector
  • Iimp : 50 kA on 10/350µs impulse
  • Imax : 200 kA on 8/20µs impulse
  • Internal disconnecctions, status indicator and remote signaling
  • IEC 61643-11 and EN 61643-11

The DS500E is a SPD with a very high impulse discharge current (Iimp) of 50 kA, based on multi-varistor technology. A such high value could be required in the worse-case conditions (200 kA direct strike on installation equipped with single phase or 3-phase AC network).


SPD type
IEC

1+2

Network

230/400 V

Max. AC operating voltage
Uc

255 Vac

Max. load current
if series connection
IL

100 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

< 3 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

50 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

200 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

50 kA

Specific energy by pole
max. withstand 10/350 µs
W/R

625 kJ/ohm

Connection mode(s)

L/N and L/PE

Protection level
@ In (8/20µs)
Up

1.8 kV

Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA

0.8 kV

Admissible short-circuit current
Isccr

50 000 A

Technology

MOV

Connection to Network

By screw terminals: 6-35mm²

Format

1-pole modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator

Remote signaling of disconnection

Output on changeover contact

Dimensions

See diagram

Weight

0.595 kg

Standards compliance

IEC 61643-11 / EN 61643-11

Certification
Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuses Type gG - 500 A
