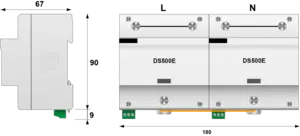

Type 1+2 AC surge protector single-phase
DS502E-400
Part Number 64028
- Type 1 + 2 multipolar AC surge protector
- Iimp total : 100 kA (10/350µs impulse)
- Imax : 200 kA (8/20µs impulse)
- Internal disconnections, status indicator and remote signaling
- Conforme NF EN 61643-11, IEC 61643-11, UL1449 ed.5
The DS500E range of surge protectors are Type 1 + 2, very high power, they are intended to be installed at the entry of the Low Voltage installation.
They are used to protect single-phase, three-phase or three-phase + Neutral networks in common mode or in common and differential mode.
The 'Multi-Varistor' technology used allows the best possible behavior for the LV network (no follow-on current).
The DS500E range is installed on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.
Select another reference:
SPD type
|
1+2 | |
Network
|
230 V single-phase | |
AC system
|
IT | |
Nominal line voltage
|
Un | 400 Vac |
Max. AC operating voltage
|
Uc | 440 Vac |
Max. load current
if series connection
|
IL | 100 A |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 580 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 770 Vac disconnection |
Operating current
Continious current at Uc
|
Ic | < 3 mA |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 50 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 200 kA |
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 50 kA |
Total lightning current
max. total withstand @ 10/350µs
|
Itotal | 100 kA |
Specific energy by pole
max. withstand 10/350 µs
|
W/R | 156 kJ/ohm |
Connection mode(s)
|
L/PE and N/PE | |
Protection mode(s)
|
Common mode | |
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 2.2 kV |
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 2.2 kV |
Admissible short-circuit current
|
Isccr | 50 000 A |
Technology
|
MOV | |
SPD configuration
|
Single phase | |
Connection to Network
|
By screw terminals: 6-35mm² / by bus | |
Format
|
1-pole modular box assembled | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection from AC network | |
Disconnection indicator
|
1 mechanical indicator by pole | |
Remote signaling of disconnection
|
Output on changeover contact | |
Dimensions
|
See diagram | |
Weight
|
1.438 kg |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
Certification
|
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed | |
Back-up protection device
|
Fuses Type gG - 500 A |
