Compact Type 2+3 hard wired surge protector
MSB10-480(UL)
Part Number: 561801
- Compact type 2 (or 3) surge protector
- Wall mounting and hard wired connection
- Status indicators
- IP66
- UL1449 ed.4

MSB10 surge protectors Type 2 (or 3) are designed for effective protection of sensitive equipment, in addition to the surge protector installation (coordination surge protector). These surge protectors utilize a compact and economica scheme based varistors, to obtain a power flow relevant for secondary protection.
Select another reference:
SPD type following IEC test |
2+3 |
Network |
347-480 Vac single-phase |
AC system |
TT/TN |
Nominal line voltage |
480 V |
Max. AC operating voltage L-N |
550 Vac |
Temporary Over Voltage (TOV) Charasteristics - 5 sec. without disconnection |
700 Vac withstand |
Temporary Over Voltage (TOV) Charasteristics - 120 mn without disconnection or with safety disconnection |
915 Vac disconnection |
Operating current Continious current at Uc |
< 1 mA |
Follow current |
None |
Nominal discharge current 15 x 8/20 µs impulses |
3 kA |
Max. discharge current max. withstand @ 8/20 µs by pole |
10 kA |
Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs - 8/20µs |
6 kV |
Withstand on overvoltages IEEE C62.41.1 |
10 kV / 10 kA |
Admissible short-circuit current |
10 000 A |
Protection mode(s) |
Common/Differential mode |
Protection level @ In (8/20µs) |
1.8 kV |
Protection level L/N @ In (8/20µs) |
1.8 kV |
Protection level L/PE @ In (8/20µs) |
1.8 kV |
Protection level CM/DM @ In (8/20µs) |
2 kV/2 kV |
Technology | MOV |
Connection to Network | wires |
Mounting |
Wall or plate |
Housing material | Thermoplastic UL94-V0 |
Operating temperature | -40/+85°C |
Protection rating | IP66 |
Failsafe behavior | Disconnection |
Disconnection indicator | Green led OFF |
Voltage/operating indicator | Green Led ON |
Dimensions |
See diagram |
Standards compliance |
IEC 61643-11 / EN 61643-11 / UL1449 4ed. |

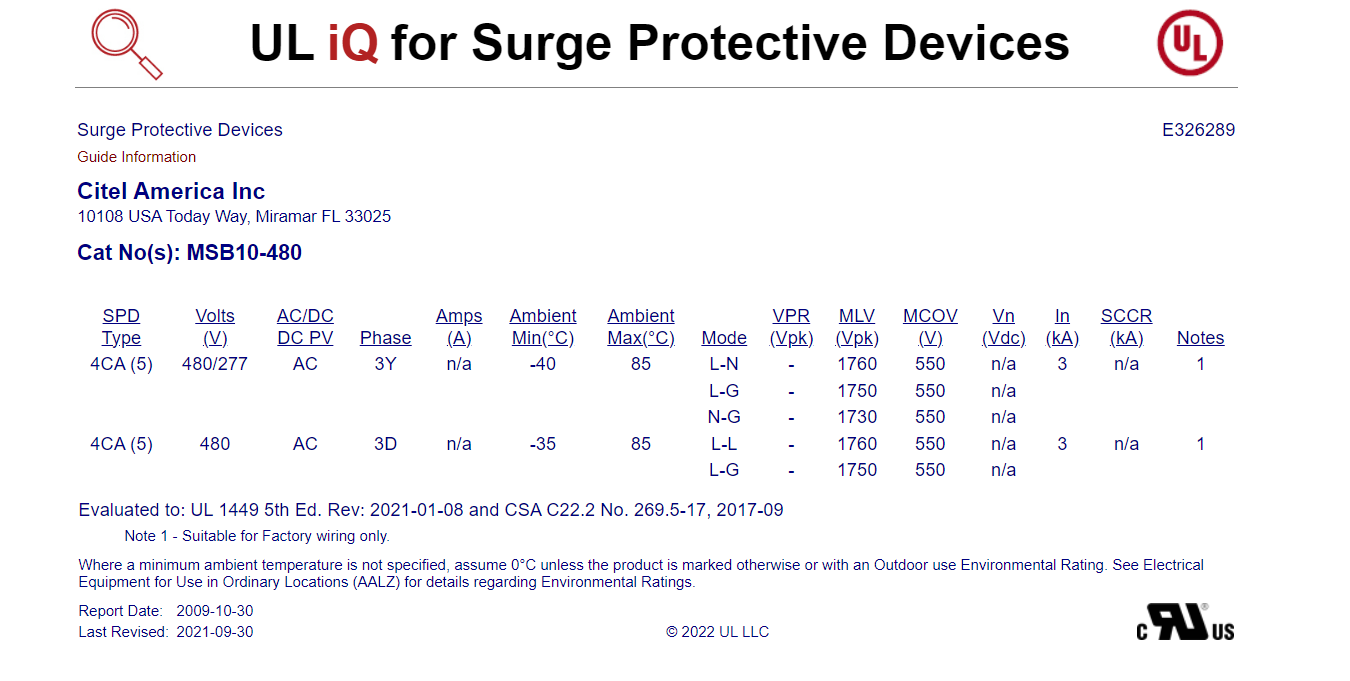

Certification |
UL / EAC |
Installation ground fault breaker | Type 'S' or delayed |
Thermal disconnector | Internal |
