Compact Type 2+3 hard wired surge protector

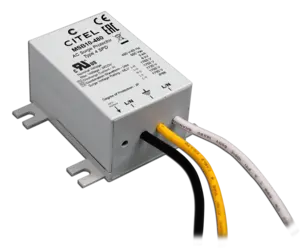

MSB10-400(UL)
MSB10-400(UL)
Part Number: 561501
  • Compact type 2 (or 3) surge protector
  • Wall mounting and hard wired connection
  • Status indicators
  • IP66
  • UL1449 ed.4
Installation Sheet
Contact Us

MSB10 surge protectors Type 2 (or 3) are designed for effective protection of sensitive equipment, in addition to the surge protector installation (coordination surge protector). These surge protectors utilize a compact and economica scheme based varistors, to obtain a power flow relevant for secondary protection.

SPD type
following IEC test		 2+3
Network
 230 V single-phase
AC system
 TT-TN
Nominal line voltage
 230 V
Max. AC operating voltage L-N
 300 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
without disconnection		 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
without disconnection or with safety disconnection		 440 Vac disconnection
Operating current
Continious current at Uc		 < 1 mA
Follow current
None
Nominal discharge current
15 x 8/20 µs impulses		 3 kA
Max. discharge current
max. withstand @ 8/20 µs by pole		 10 kA
Withstand on Combinaison waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs		 6 kV
Withstand on overvoltages IEEE C62.41.1
 10 kV / 10 kA
Admissible short-circuit current
 10 000 A
Protection mode(s)
 Common/Differential mode
Protection level
@ In (8/20µs)		 1.2 kV
Protection level L/N
@ In (8/20µs)		 1.2 kV
Protection level L/PE
@ In (8/20µs)		 1.2 kV
Protection level CM/DM
@ In (8/20µs) 		1.2 kV/1.2 kV
Technology MOV
Connection to Network wires
Mounting
 Wall or plate
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP66
Failsafe behavior Disconnection
Disconnection indicator Green led OFF
Voltage/operating indicator Green Led ON
Dimensions
 See diagram
Certification
 UL / EAC / TUV
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Thermal disconnector Internal
Installation ground fault breaker Type 'S' or delayed
