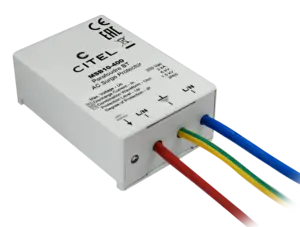

Compact Type 2+3 hard wired surge protector

MSB10-400
Part Number 561201
MSB10-400
  • Compact type 2 (or 3) surge protector
  • Wall mounting and hard wired connection
  • Status indicators
  • IP65
  • Compliant EN 61643-11, IEC 61643-11 et UL1449 ed.5

MSB10 surge protectors Type 2 (or 3) are designed for effective protection of sensitive equipment, in addition to the surge protector installation (coordination surge protector). These surge protectors utilize a compact and economica scheme based varistors, to obtain a power flow relevant for secondary protection.


SPD type
IEC

2+3

Network

230 V single-phase

AC system

TT-TN

Nominal line voltage
Un

230 V

Max. AC operating voltage
Uc

255 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Operating current
Continious current at Uc
Ic

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

3 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

10 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

6 kV

Withstand on overvoltages IEEE C62.41.1

10 kV / 10 kA

Protection mode(s)

Common/Differential mode

Protection level L/N
@ In (8/20µs)
Up L/N

1.5 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.5 kV

Admissible short-circuit current
Isccr

10 000 A

Technology

MOV+GDT

Connection to Network

Wires

Mounting

Wall or plate

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP65

Failsafe mode

Disconnection from AC network

Disconnection indicator

Green LED OFF

Operating indicator

Green Led ON

Dimensions

See diagram

Weight

0.116 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

/ TUV Süd

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed
