Wind Turbine
Type 1 Wind Turbine surge protector

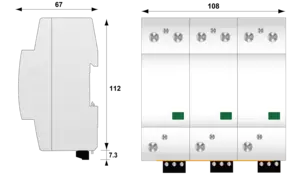

DACN1-25VGS-30-760
Type 1+2+3 AC surge protector - 3-phase
DACN1-25VGS-30-760
Part Number:
29223012
Type 1 + 2+3 AC surge protector
VG Technology
In: 35 kA
Iimp: 25 kA on 10/350µs impulse
No leakage current
Unpluggable module for each phase
Remote signaling
Optimized to TOV
EN 61643-11, IEC 61643-11 complied
Contact Us
The DACN1-25VG is an extreme duty Type 1+2 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod, and in wind turbines' application, the low-voltage side of transformer and power side of convertor is the typical application. Equipped with exclusive CITEL’s VG technology, the range achieves an high protection level, guaranteeing a maximum protection efficiency, a absence of follow and leakage currents, a simplification of use (no additional lightning arrester required) and a maximum lifetime.
Select another reference:
DACN1-25VGS-10-760
DACN1-25VGS-20-760
DACN1-25VGS-30-760
DACN1-25VGS-40-760
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2+3
Network
400/690 Vac 3-phase
Max. AC operating voltage
Uc
760 Vac
Max. load current
IL
100 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
1000 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
1325 Vac disconnection
Residual Current
Ipe
None
Follow current
If
None
Nominal discharge current
In
35 kA
Max. discharge current
Imax
70 kA
Impulse current by pole
Iimp
25 kA
Total lightning current
Itotal
75 kA
Withstand on Combination waveform IEC 61643-11
Uoc
6 kV
Specific energy by pole
W/R
156 kJ/ohm
Protection mode(s)
L/PE
Protection level
Up
2.5 kV
Protection level L/PE
Up L/PE
2.5 kV
Residual voltage L/PE at 5 kA
Up-5kA
1.6 kV
Admissible short-circuit current
Isccr
50 000 A
Technology
VG Technology (MOV+GSG)
SPD configuration
3-phase
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
1-pole modular box assembled
Plugable
No
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole - Red/Green
Remote signaling of disconnection
Output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 6TE (EN43880)
Weight
1.439 kg
Standards compliance
EN 61643-11 / IEC 61643-11
Certification
TUV
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
Fuse assembly: SFD1-25-30S / or Fuses Type gG 315 A
