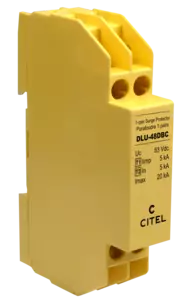

1-pair monobloc Data surge protector
DLU-48DBC
Part Number: 640514
- For DIN rail mounting
- Monobloc housing
- 1-pair
- Un: 48 V
- Transmission an protection of shield wire
- IEC 61643-21 compliance
- UL497A
Installation Sheet
DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure
Select another reference:
| Network |
Fipway, WorldFIP, FieldBus-H2 |
| Nominal line voltage |
48 V |
| Max. DC operating voltage | 53 V |
| Max. load current |
300 mA |
| Max. frequency |
> 20 MHz |
| Insertion loss |
< 1 dB |
| Max. discharge current max. withstand @ 8/20 µs by pole |
20 kA |
| Line inductance | non |
| Protection mode(s) |
Commun/Differential mode |
| Protection level @ In (8/20µs) |
75 V |
| Protection level L/N @ In (8/20µs) |
75 V |
| Protection level L/PE @ In (8/20µs) |
75 V |
| Max. shunt capacitance | < 50 pF |
| Impulse current 2 x 10/350µs Test - D1 Category |
5 kA |
| Nominal discharge current 8/20µs Test x 10 - C2 Category |
5 kA |
| line resistance | < 4.7 Ohm |
| Technology | GDT+Clamping diode |
| SPD configuration | 1-pair + shielded |
| Connection to Network | screw terminal - cross section 0.4-1.5 mm² |
| Format | DIN box |
| Mounting | Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Outdoor application |
False |
| Failsafe behavior | Short-circuit - transmision cut-off - fault mode 2 |
| Disconnection indicator | transmission interrupt |
| Remote signaling of disconnection | no |
| Max. number of pairs | 1 |
| Dimensions |
see diagram |
| Certification | UL listed |
| Standards compliance | IEC 61643-21 / EN 61643-21 / UL497 A |
