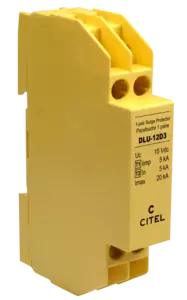

1-pair monobloc Data surge protector

DLU-12D3
Part Number: 640502
DLU-12D3
  • For DIN rail mounting
  • Monobloc housing
  • 1-pair
  • Un: 12 V
  • Transmission an protection of shield wire
  • IEC 61643-21 compliance
  • UL497A
Contact Us
DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure
Network
 Profibus-FMS, Interbus, FieldBus-H1, Batibus, RS232, RS485
Nominal line voltage
 Un 12 V
Max. DC operating voltage
 Uc 15 Vdc
Max. frequency
 f max. > 3 MHz
Insertion loss
 < 1 dB
Max. load current
 IL 300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 20 kA
Protection mode(s)
 Common/Differential mode
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
 Up 30 V
Max. capacitance
 C < 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 5 kA
Nominal discharge current
C2 Category
 In 5 kA
Line resistance
 < 4.7 Ohm
Technology
 GDT+Clamping diode
SPD configuration
 1-pair+shielded
Connection to Network
 By screw terminal - cross section 1.5-2.5mm²
Format
 DIN box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Short-circuit - transmision cut-off - fault mode 2
Disconnection indicator
 Transmission interrupt
Dimensions
 See diagram
Weight
 0.061 kg
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497 A
Certification
 UL listed
