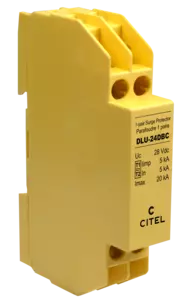

1-pair monobloc Data surge protector
DLU-24DBC
DLU-24DBC
Part Number: 640513
  • For DIN rail mounting
  • Monobloc housing
  • 1-pair
  • Un: 24 V
  • Transmission an protection of shield wire
  • IEC 61643-21 compliance
  • UL497A
Installation Sheet

DLU surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors and are made with DIN rail monobloc enclosure



Network
24 V line, High bitrate
Nominal line voltage
24 V
Max. DC operating voltage 28 V
Max. load current
300 mA
Max. frequency
> 20 MHz
Insertion loss
< 1 dB
Max. discharge current
max. withstand @ 8/20 µs by pole
20 kA
Protection mode(s)
Common/Differential mode
Protection level
@ In (8/20µs)
50 V
Max. shunt capacitance < 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
5 kA
Nominal discharge current
8/20µs Test x 10 - C2 Category
5 kA
line resistance < 4.7 Ohm

Technology GDT+Clamping diode
SPD configuration 1-pair + shielded
Connection to Network screw terminal - cross section 0.4-1.5 mm²
Format DIN box
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Failsafe behavior Short-circuit - transmision cut-off - fault mode 2
Disconnection indicator Transmission interrupt
Dimensions
See diagram
Standards compliance IEC 61643-21 / EN 61643-21 / UL497 A
Certification UL listed
