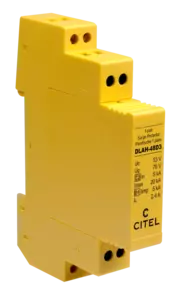

1-pair DIN rail plug-in Data surge protector
DLAH-48D3
DLAH-48D3
Part Number: 641004
  • Pluggable surge protection for «DIN» mounting
  • Coordination inductor
  • Up to 2.4 A line current
  • Remote supply version
  • All types of Telephone and Data lines
  • Shield wire protection
  • IEC 61643-21 compliance
Installation Sheet

DLAH surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors with removable module for easy maintenance.


Network IDSN-T0, 48V line
Nominal line voltage Un 48 V
Max. DC operating voltage Uc 53 V
Max. load current IL 2,4 A
Max. frequency f max. > 3 MHz
Insertion loss < 1 dB
Max. discharge current Imax 20 kA
Line inductance No
Protection mode(s) Common/Differential mode
Protection level Up 70 V
Impulse current Iimp 5 kA
Nominal discharge current In 5 kA
Line/Line Nominal discharge current In L/L 5 kA
Line/Ground Nominal discharge current In L/PE 5 kA
Line resistance 0 Ohm
Technology GDT+Clamping diode
SPD configuration 1-pair + shielded
Format Plug-in DIN box
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Failsafe mode Short-circuit - transmision cut-off - fault mode 2
Spare module(s) DLAHM-48D3

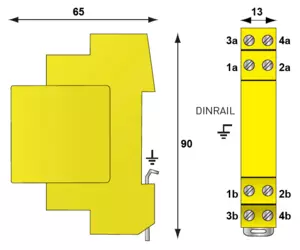

Dimensions See diagram
Weight 0.064 kg
Standards compliance IEC 61643-21 / EN 61643-21 / UL497A
Certification UL listed
