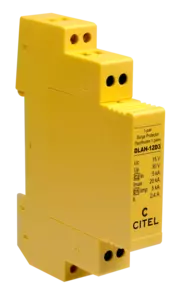

1-pair DIN rail plug-in Data surge protector
DLAH-12D3
DLAH-12D3
Part Number: 641002
  • Pluggable surge protection for «DIN» mounting
  • Coordination inductor
  • Up to 2.4 A line current
  • Remote supply version
  • All types of Telephone and Data lines
  • Shield wire protection
  • IEC 61643-21 compliance
Installation Sheet

DLAH surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 1-pair surge protectors with removable module for easy maintenance.



Network
RS232, RS485
Nominal line voltage
12 V
Max. DC operating voltage 15 V
Max. load current
2,4 A
Max. frequency
> 3 MHz
Insertion loss
< 1 dB
Max. discharge current
max. withstand @ 8/20 µs by pole
20 kA
Line inductance
No
Protection mode(s)
Common/Differential mode
Protection level
@ In (8/20µs)
30 V
Protection level L/N
@ In (8/20µs)
30 V
Protection level L/PE
@ In (8/20µs)
30 V
Impulse current
2 x 10/350µs Test - D1 Category
5 kA
Nominal discharge current
8/20µs Test x 10 - C2 Category
5 kA
Line/Line Nominal discharge current
8/20µs Test x 10 - C2 Category
5 kA
Line/Ground Nominal discharge current
8/20µs Test x 10 - C2 Category
5 kA
line resistance 0 Ohm

Technology GDT+Clamping diode
SPD configuration 1-pair + shielded
Connection to Network screw terminal - cross section 0.4-1.5 mm²
Format Plug-in DIN box
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Failsafe behavior Short-circuit - transmision cut-off - fault mode 2
Spare module(s)
DLAHM-12D3
Dimensions
See diagram
Certification UL listed
Standards compliance IEC 61643-21 / EN 61643-21 / UL497A
