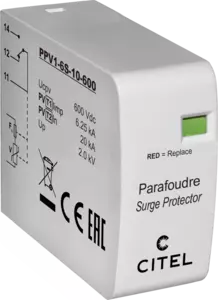

Type 1+2 PV Surge Protector for PCB mounting
Part Number: 8723203
PPV1-6S-10-600
- Type 1+2 surge protector for Photovoltaic
- PCB mounting
- Iimp : 6.25 kA (10/350 µs)
- Remote signaling
- EN 50539-11 and IEC 61643-31 compliance*
Certificates
Datasheet
|
SPD type
|
IEC | 1+2 |
|
Max. PV operating voltage
|
Ucpv | 600 Vdc |
|
Max. PV operating voltage (star mounting)
|
Ucpv | 1200 Vdc |
|
PV Permanent Operating current
Current consumption at Ucpv
|
Icpv | < 0.1 mA |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 6.25 kA |
|
Current withstand short circuit PV
|
Iscpv | 15 000 A |
|
Protection level
@ In (8/20µs)
|
Up | 2 kV |
|
Protection level (star mounting)
(+/-) / (+/PE or -/PE) @ In (8/20µs)
|
Up | 4 kV |
|
Connection to Network
|
Through soldering pins |
|
|
Mounting
|
On Printed Circuit Board |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Disconnection indicator
|
Mechanical indicator |
|
|
Remote signaling of disconnection
|
Output on changeover contact |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-31 / EN 50539-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly. |
|
Thermal disconnector
|
Internal |
|
|
Back-up protection device
|
Without |
